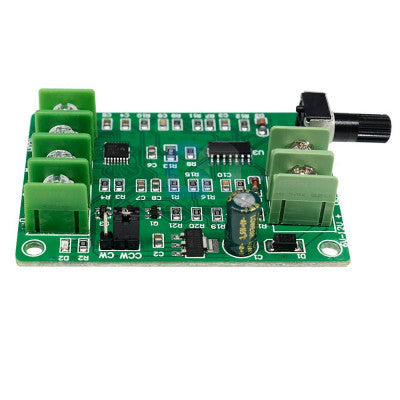

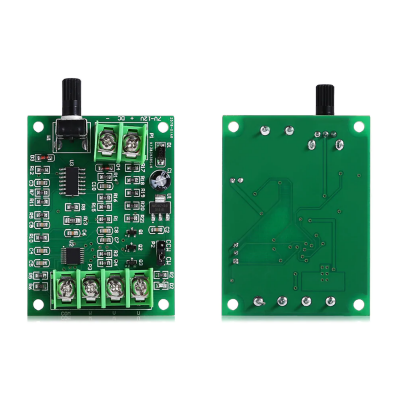

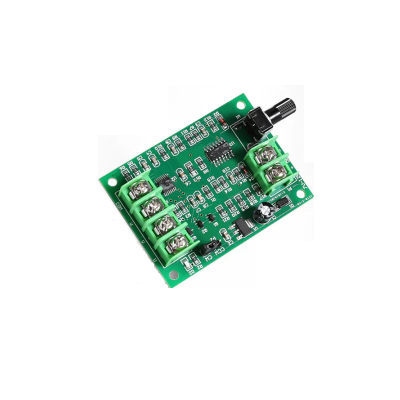

5V-12V DC Brushless Driver Board Controller For Hard Drive Motor 3/4 Wire
Low power motor driver for BLDC motors without hall sensor.
- Drive voltage: 5-12V
- Work current: ?1.2 A
- Length (mm): 70
- Width (mm): 45
- Height (mm): 10
- Weight (gm): 21
Features:
- Voltage Regulator
- Speed range: 0% to 100%
- Phase inversion Control: Yes
- Voltage polarity protection: Yes
The 5V-12V DC Brushless Driver Board Controller is designed to drive hard disk brushless motors, CD-ROM brushless motors, and other micro brushless motors with 3 or 4 wires without a hall sensor. It offers reverse voltage protection and overcurrent protection for user safety. The driver voltage range is 5-12V, with higher voltage resulting in faster speeds, reaching up to 10,000rpm.
Suitable for hard brushless motors, brushless motor drives, and other miniature 3/4 wire brushless motors without hall sensors.
Package Includes: 1 x 5V-12V DC Brushless Driver Board Controller For Hard Drive Motor.
Images are for illustration only; actual product may vary.
