5P4M and 5P6M Thyristor
A P gate all diffused mold type Thyristor with 5 A On-state Average Current (TC = 103°C).
- Non-Repetitive Peak Reverse Voltage: 500 V
- Non-Repetitive Peak Off-state Voltage: 500 V
- Repetitive Peak Reverse Voltage: 400 V
- Repetitive Peak Off-state Voltage: 400 V
- Average on-state current: 5 A (TC = 103°C, ? = 180°, Single phase half wave)
- Effective on-state current: 8 A
- Surge Non-Repetitive On-state Current: 80 A (f = 50 Hz, sine half wave, 1 cycle)
- Fusing current: 28 A2 s (1 ms ? t ? 10 ms)
Features:
- Easy installation by TO-220AB package.
- 80 A surge current.
- High Voltage:
- VDRM, VRRM = 400 V (5P4M)
- VDRM, VRRM = 600 V (5P6M)
Application:
- Motor speed control for household appliance.
- Temperature control for heater and constant temperature box.
- Constant voltage power source and battery charger.
- Automotive application such as a regulator.
- Various solid-state relays, etc.
Related Document: 5P4M Data Sheet

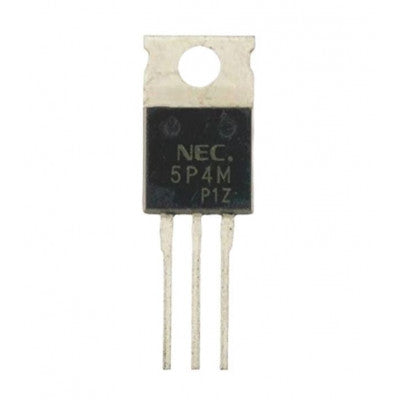

*Images are for illustration only; actual product may vary.
