Gear Motor for Robotics and Automation Projects
High-quality DC motor with gearbox for optimal performance
- Output RPM: 500 rpm
- Stall Torque: 0.7 Kg/cm
- Stall Current: 750 - 800 mA
- Motor Body Length: 75mm
- Motor Body Diameter: 35mm
- Material: Cast Iron
- Shaft Diameter: 6mm
- Working Voltage: 12V
Top Features:
- Optimal for robot drives and actuators
- Wide range of RPM and Torque ratings
- Can be used in counting and sorting machines
- Gear assembly for increased torque and reduced speed
A geared DC Motor consists of a gear assembly attached to the motor, with the speed measured in RPM. The gear assembly plays a crucial role in increasing torque and decreasing speed. By selecting the appropriate gear combination, the speed of the gear motor can be adjusted to meet specific requirements. This mechanism, where gears lower the speed of the device while enhancing its torque, is referred to as gear reduction.
Applications:
The gear motor is commonly used in Pan/Tilt cameras, auto shutters, welding machines, water meters, and various other applications such as household appliances, lighting, and automatic actuators.
Package Includes:

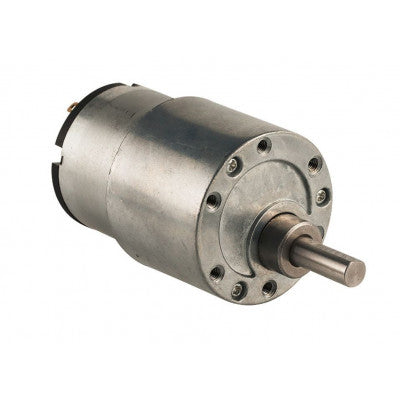

- 1 x 500 RPM Side Shaft DC Geared Motor
Images are for illustration only; actual product may vary.
