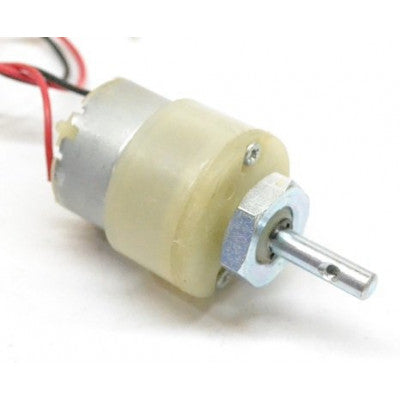

DC Motor – 500RPM – 12Volts
Perfect for robotics applications with a 500 RPM speed and 12V operating voltage.
- RPM: 500
- Operating Voltage: 12V DC
- Gearbox: Attached Plastic (spur) Gearbox
- Shaft diameter: 6mm with internal hole
- Torque: 1 kg-cm
- No-load current: 60 mA (Max)
- Load current: 300 mA (Max)
Top Features:
- Robust metal gearbox for heavy-duty applications
- Easy to connect with nut and threads on the shaft
- Internal threaded shaft for connecting to wheels
- Wide RPM range suitable for various industrial applications
Geared motors are generally a simple DC motor with a gearbox attached, ideal for all-terrain robots and a variety of robotic applications. The 3mm threaded drill hole in the shaft makes it easy to connect to wheels or other mechanical assemblies.
500 RPM 12V DC geared motors are widely used in robotics applications due to their ease of use and standard size. You can control these motors with an Arduino or compatible board without spending a lot of money. The popular L298N H-bridge module with an onboard voltage regulator motor driver is compatible with this motor, operating between 5 and 35V DC. Alternatively, choose a precise motor driver module from our wide range to meet specific requirements.
DC Geared motors with a robust metal gearbox are designed for heavy-duty applications, offering a wide RPM range suitable for robotics and industrial applications. The nut and threads on the shaft facilitate easy connection, while the internally threaded shaft simplifies connecting to wheels.
*Images are for illustration only; actual product may vary.
