Straight Bar 5kg Load Cell with Complete Assembly Kit
Translate up to 5 kg of pressure into an electrical signal
- Weighing Range: 0 ~ 5 Kg
- Impedance: 1066 ± 10%
- Rated Output: 1.0 ± 0.1mV / V
- Zero Balance: 0.1 mV / V
- Body Diameter: 100 mm
- Insulation Resistance: 1000 M

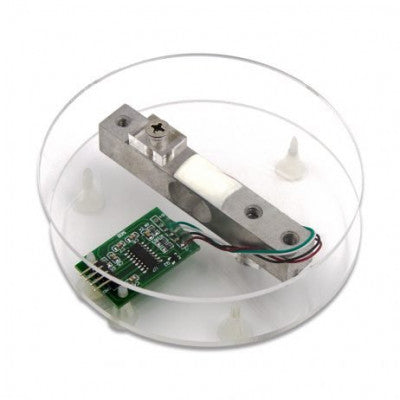

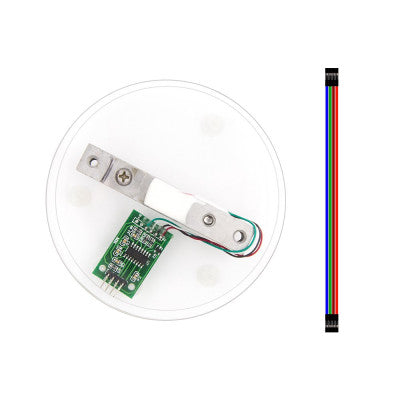

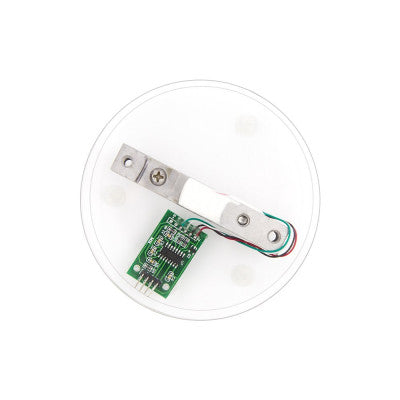

- Package Includes: 1 x 5 kg Load Cell with HX711 Module Shell and 4P DuPont Wire Kit
Features:

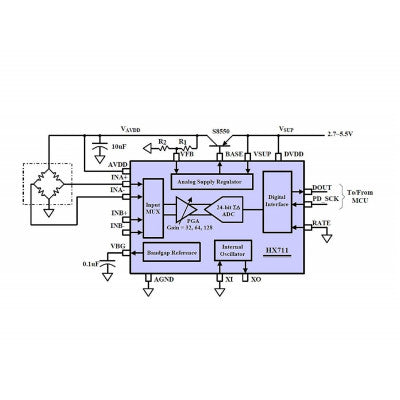

- On-chip active low noise PGA with selectable gain
- Simple digital control and serial interface
- Connect load cell with HX711 module easily

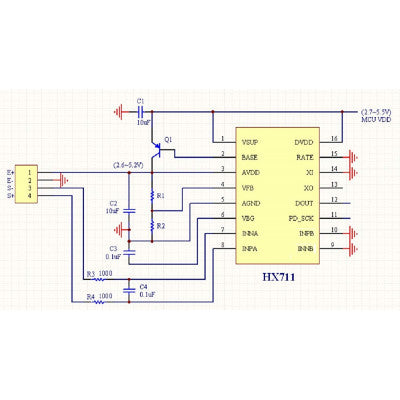

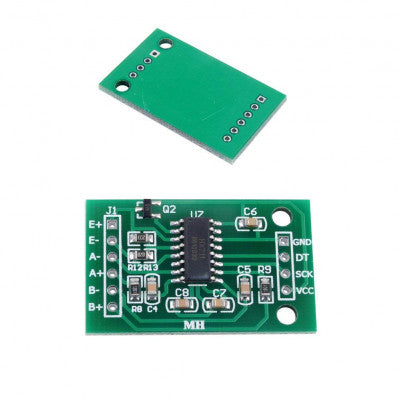

- 24 high precision A/D converter chip HX711

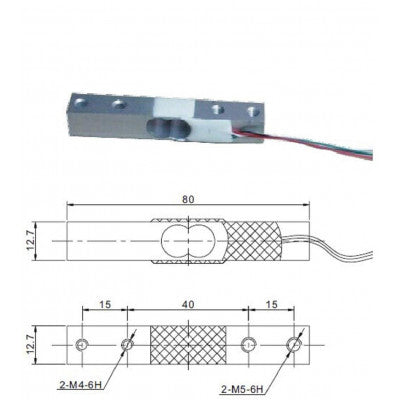

This straight bar 5kg load cell, also known as a strain gauge, can measure up to 5 kg of pressure and translate it into an electrical signal. Made from an aluminum alloy, it has four lead wires for easy connection to the HX711 Load Cell Amplifier Module. With a weighing capacity of 0~5KG, it operates at a driving voltage of 5-10V and produces output voltage proportional to the force applied.

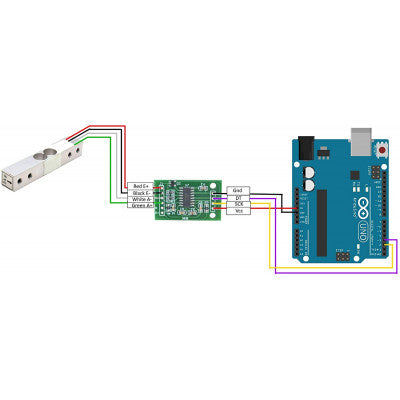

It is essential to connect the load cell with the HX711 module correctly: Red to E+, Black to E-, Green to A+, White to A-. The HX711 module features a 24 high precision A/D converter chip for accurate readings.
