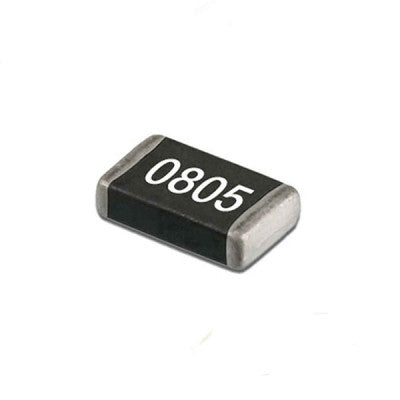

5.6K ohm 0805 Package 1/8W SMD Resistor 5% Tolerance (Reel of 5000 Pieces)

5.6K ohm SMD Resistor - 0805 Package

A standard thick film chip resistor with higher voltage rating

• Resistance: 5.6K ohm
• Power Rating (Watt): 0.125W, 1/8W
• Operating Temperature: -55 °C to +155 °C
• Package: 0805
• Tolerance: ±5%
• Voltage Rating: 150V

Top Features:

• Standard thick film chip resistor
• Higher voltage rating
• 0805 package size

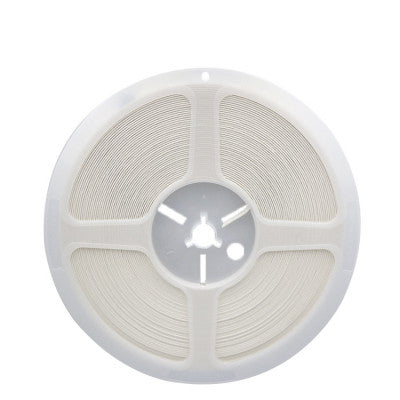

• Reel of 5000 pieces

5.6K ohm SMD Resistor - 0805 Package is a type of surface mount resistor that is commonly used in various applications such as consumer electronics, industrial applications, power management, and portable devices. The 0805 package SMD resistors have a higher voltage rating and are larger in size compared to 0603, 0402, and 0201 package SMD resistors.

Package Includes:

• 1 x 5.6K ohm 0805 Package 1/8W SMD Resistor 5% Tolerance (Reel of 5000 Pieces)

Images are for illustration only; actual product may vary.
