5-36V SWITCH DRIVE HIGH-POWER MOSFET TRIGGER MODULE

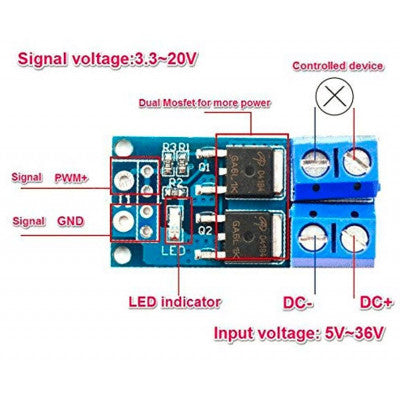

A high-power MOS trigger switch driver module with imported dual-MOS parallel active output.
- Trigger Source: 3.3V to 20V DC
- Signal Frequency: 0-20KHz Supported
- Output Drive Capacity: 5V to 36V DC
- Continuous Current: 15A at Room Temperature
Features:
- Supports digital high-low trigger source
- Output capacity of 5V to 36V DC
- Continuous current of 15A at room temperature
- Perfect support for PWM signal frequency 0-20KHz
The 5-36V SWITCH DRIVE HIGH-POWER MOSFET TRIGGER MODULE is designed to easily control high-power devices such as motors and light bulbs. It can be connected to microcontroller IO ports, PLC interfaces, and DC power sources. With a continuous current of 15A and power of 400W, it can efficiently control various power equipment and devices.
It works at room temperature and supports a wide voltage range, making it suitable for a variety of applications including motor speed control and lamp brightness adjustment. The module's dual-MOS parallel active output ensures lower resistance, higher current, and strong power output.
Applications include controlling power equipment, motors, light bulbs, LED lights, DC motors, micro-pumps, solenoid valves, PWM, motor speed control, and lamp brightness.
* Images are for illustration only; actual product may vary.
