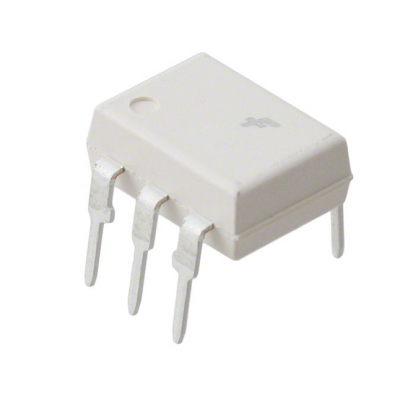

4N38 Optocoupler Phototransistor IC DIP-8 Package
UL Listed Optocoupler with 5300 VRMS Isolation Test Voltage
- Reverse voltage: 6V
- Forward current: 60mA
- Surge current: 2.5A
- Power dissipation: 100mW
- Collector-emitter breakdown voltage: 70V
- Emitter-base breakdown voltage: 7V
- Collector current: 50mA
- Package Includes: 1 x 4N38 Optocoupler Phototransistor IC DIP-8 Package
Top Features:
- Isolation test voltage 5300 VRMS
- Interfaces with common logic families
- Input-output coupling capacitance < 0.5 pF
- Industry standard dual-in-line 6 pin package
4N38 optocoupler consists of gallium arsenide infrared LED and a silicon NPN phototransistor. These couplers are Underwriters Laboratories (UL) listed to comply with a 5000 VRMS isolation test voltage. This isolation performance is accomplished through double molding isolation manufacturing process. Compliance to DIN EN 60747-5-5 partial discharge isolation specification is available for these families by ordering option 1. These isolation processes and the ISO9001 quality program results in the highest isolation performance available for a commercial plastic phototransistor optocoupler. The devices are available in lead formed configuration suitable for surface mounting and are available either on tape and reel, or in standard tube shipping containers.
Applications:
- AC mains detection
- Reed relay driving
- Switch mode power supply feedback
- Telephone ring detection
- Logic ground isolation
- Logic coupling with high frequency noise rejection
*Images are for illustration only; actual product may vary.
