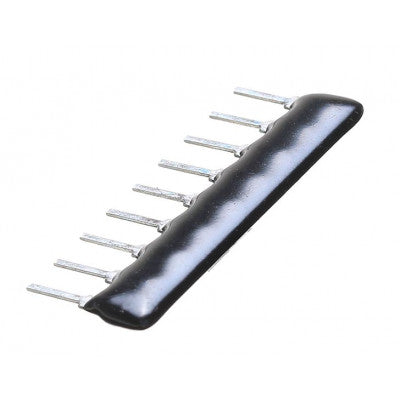

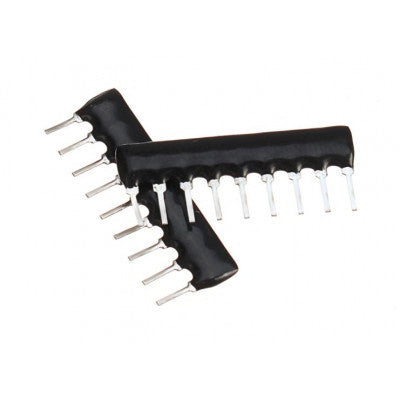

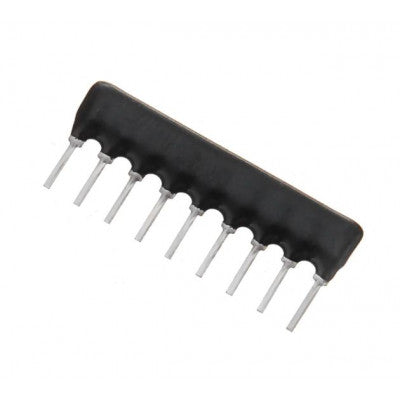

47K Ohm 9 Pin Resistor Network - SIP
A passive nine-terminal electrical component with eight 47K ohms resistances and one common ground.
- Resistance: 47K Ohms
- Tolerance: ±5%
- Maximum Working Voltage: 100(V)
- Maximum Overload Voltage: 150(V)
- Mounting Type: Through Hole
- Power Rating: 1/2 Watt
- Temperature Coefficient: ±200ppm/°C
- Operating Temperature: -55°C ~ 155°C
- Color: Black
- Pins: 9
- Resistors: 8
Top Features:
- Eight 47K ohms resistances
- One common ground
- Through Hole mounting type
- 1/2 Watt power rating
The resistor array is designed to provide a total resistance of 47K ohms with a tolerance of ±5%. It has a maximum working voltage of 100V and can withstand overload voltages up to 150V. With a temperature coefficient of ±200ppm/°C, this resistor network operates effectively in temperatures ranging from -55°C to 155°C. The black-colored SIP package includes 1 x 47K ohm 9 Pin Resistor Network.
* Images are for illustration only; actual product may vary.
