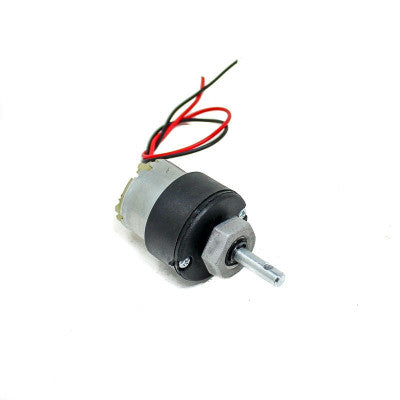

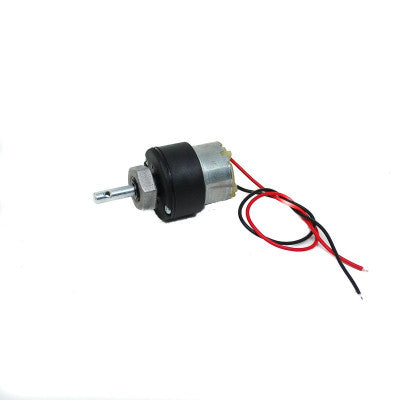

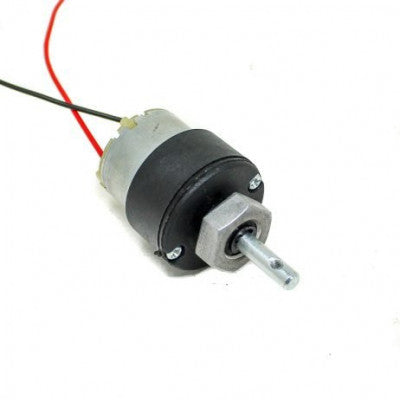

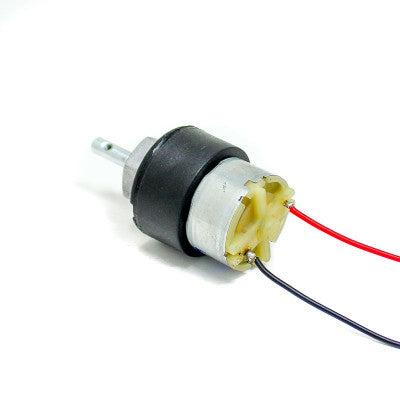

45RPM 12V Low Noise DC Motor With Metal Gears Grade A
High-quality DC motor with metal gears for optimal performance
- Gear Material: Metal
- Rated Speed (RPM): 45
- Operating Voltage (VDC): 12
- Rated Torque (kg-cm): 4.2
- Stall Torque (Kg-Cm): 16
- Load Current Max (mA): 300
- No-Load Current (mA): 60
- Gearbox Diameter (mm): 38
- Motor Diameter (mm): 32
- Motor Length (mm): 75
- Shaft Diameter (mm): 6
- Shaft Length (mm): 21
- Weight (gm): 75
Features:

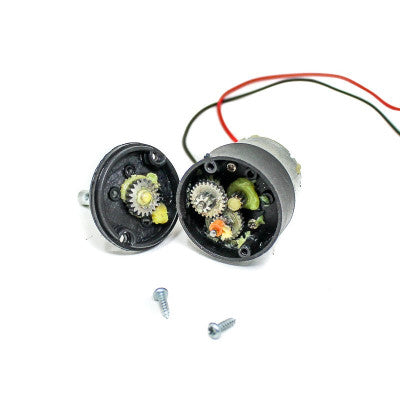

- Good Quality Gears
- Metal gears for durability
- Sealed and lubricated gearbox
- Wide range of RPM and torque

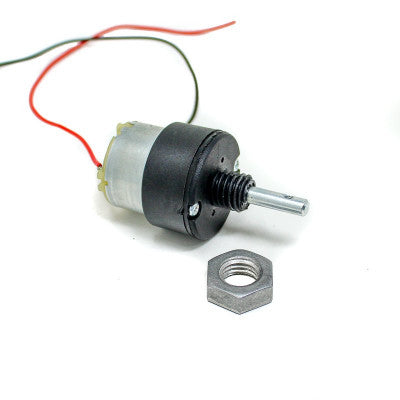

These motors are simple DC Motors featuring gears for the shaft for obtaining optimal performance characteristics. They are known as Center Shaft DC Geared Motors because their shaft extends through the center of their gearbox assembly. These standard size DC Motors are very easy to use. Also, you don't have to spend a lot of money to control motors with an Arduino or compatible board. The L298N H-bridge module with an onboard voltage regulator motor driver can be used with this motor that has a voltage of between 5 and 35V DC. This DC Motor 45RPM 12Volts can be used in all-terrain robots and a variety of robotic applications. These motors have a 3 mm threaded drill hole in the middle of the shaft thus making it simple to connect it to the wheels or any other mechanical assembly. Nut and threads on the shaft to easily connect and internally threaded shaft for easily connecting it to the wheels.
Package Includes: 1 x 45RPM 12V Low Noise DC Motor With Metal Gears Grade A
*Images are for illustration only; actual product may vary.
