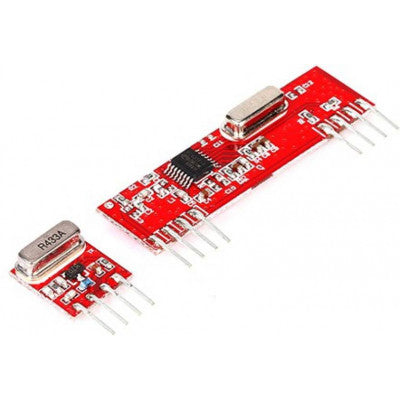

433MHz RF Transmitter Receiver Wireless Module
A complete RF transmitter and receiver module solution for data transmission.
- Range in open space (Standard Conditions): 100 Meters
- RX Receiver Frequency: 433 MHz
- RX Typical Sensitivity: 105 Dbm
- RX Supply Current: 3.5 mA
- RX IF Frequency: 1MHz
- RX Operating Voltage: 5V
- TX Frequency Range: 433.92 MHz
- TX Supply Voltage: 3V ~ 6V
- TX Output Power: 4 ~ 12 Dbm
Top Features:
- Low Power Consumption
- Easy For RF based Application
- Complete Radio Transmitter
- Transmit Range Up To 50m
This hybrid RF Transceiver Module provides a complete RF transmitter and receiver module solution which can be used to transmit data at up to 3KHz from any standard CMOS/TTL source. The transmitter module is very simple to operate and offers low current consumption (typical. 11mA). Data can be supplied directly from a microprocessor or encoding device, thus keeping the component count down and ensuring a low hardware cost. The RX – ASK is an ASK Hybrid receiver module. The RF Transmitter Receiver Module is an effective low-cost solution for using 433 MHz. The TX-ASK is an ASK hybrid transmitter module. TX-ASK is designed by the saw resonator, with an effective low cost, small size and simple to use for designing.
Applications:
- Remote Controls
- Automation System
- Wireless Security System
- Sensor Reporting
- Car Security System
- Remote Keyless Entry
