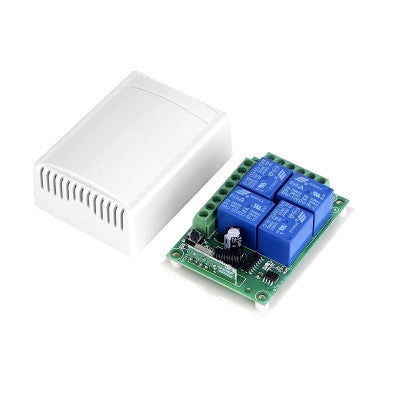

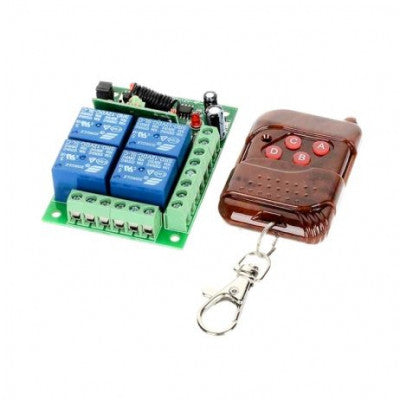

433MHz 12V 4 Channel Relay Module Wireless with RF Remote Control Switch
Control your appliances wirelessly with this 4 channel relay module
- Working Mode: Output selectable between Latching and Non Latching types
- Relay Board Operating voltage: DC12V
- Working current: 50 ~ 200mA
- Operating frequency: 433MHz
- Maximum Relay Load Ratings: 5A 220VAC / 10A 12VDC
- Dimensions: 70 x 50 x 20mm
- Working temperature: -10°C ~ +50°C
- Application: remote control electric doors, windows, switches, security, and other remote areas
Top Features:
- Wireless RF remote control
- Control up to 10A appliances
- Operating range up to 50m
- 433MHz frequency
This relay module can be controlled by a wireless remote through a wireless RF link. The relays can be used to control 240V AC up to 10A appliances, motors, other electronic circuits, etc. The board can operate within a range of 50m when the remote is in line of sight and around 25m when indoors. The RF link on this board works on the 433MHz frequency. Both the transmitter and the receiver come with an onboard antenna and offer a compact and simple design.

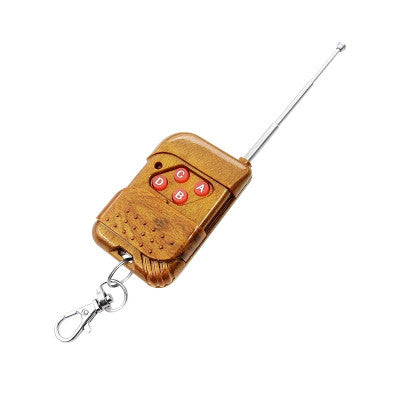

Note: Remote Control included in the package does not come with Battery due to Air Express Shipping Limitations. You have to buy the battery separately.
* Images are for illustration only; actual product may vary.
