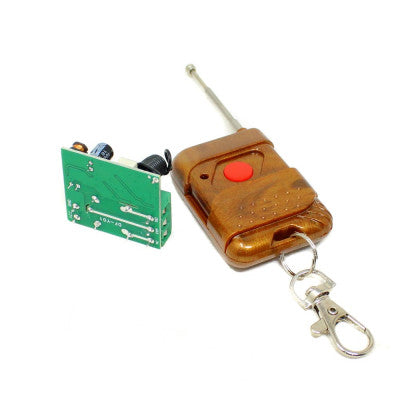

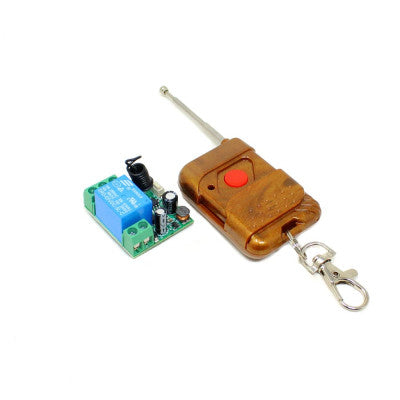

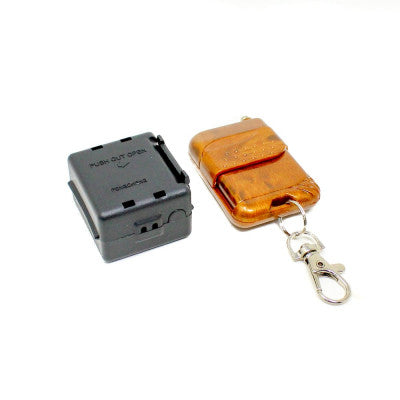

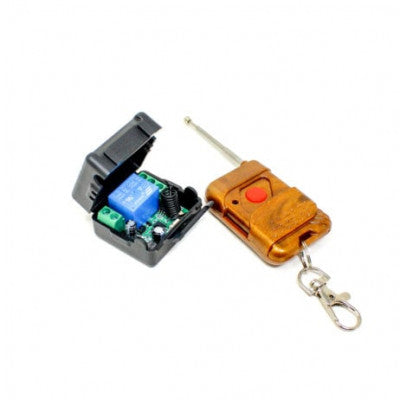

433MHz 24V 1 Channel Relay Module Wireless Remote Control Switch
Control various systems wirelessly with this versatile relay module.
- Frequency: 433MHz
- Voltage: 24V
- Channels: 1
- Control: Wireless Remote
Features:
- Intelligent microprocessor control
- Easy installation
- Small size
- Safe and reliable
This relay module is perfect for controlling garage doors, lighting, curtains, and door systems. The intelligent microprocessor ensures efficient operation. Please note that the remote control included in the package does not come with a battery due to shipping limitations. You will need to purchase the battery separately.
Operation Manual: Press the learn button for 2 or 3 seconds to enter the learning state. Release the button, press any key on the remote control, and the indicator light will flash 5 times to indicate successful learning. The controller can learn fixed code/learning code with a total of 16 different encodings. To clear beyond the 16 codes, continue holding the learning button for about 8 seconds.
Work Mode Switching: Connect a 12V DC output for single remote control switch learning. Connect a 12V DC power supply, with the output from the 12V positive public end. The control circuit is designed for simple light bulb control.
Package Includes:
- 1 x 433MHz 24V 1 Channel Relay Module
Images are for illustration only; actual product may vary.
