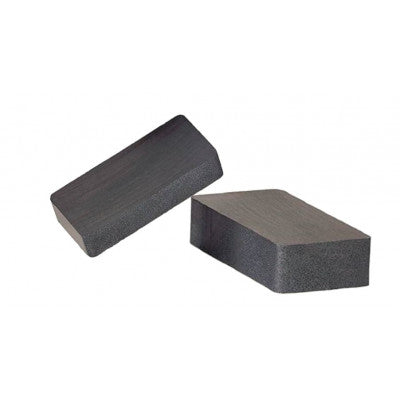

Ferrite Magnets
Low-cost, ceramic magnets suitable for various applications
- Size: 40 x 25 x 10mm thickness (L x B x H)
- Shape: Rectangular
- Color: Black
- Magnetized: through thickness
Top Features:
- Good anti-demagnetization
- Low cost
- Large coercive force
- Working temperature: -40°C to +250°C
Ferrite Magnets, also known as Ceramic Magnets, are widely used in various industries due to their excellent electrical insulation ability and corrosion-free properties. They can be used in damp, wet, or marine environments without any issues. With a working temperature range of -40°C to +250°C, these magnets are suitable for a wide range of applications.
There are 27 grades of Ferrite Magnets available, with C5 and C8 being the most commonly used grades today. C5 is a general choice for applications like over band magnets, while C8 is preferred for loudspeakers and motors due to its higher coercivity.
It's important to note that Ferrite magnets are different from soft ferrites used in transformers. Ferrite magnets are permanent magnets that retain their magnetism, making them ideal for various applications.
Applications:
Ferrite Magnets are popular in motor, generator, loudspeaker, and marine designs, as well as in industries like automotive, sensor, aerospace, military, and more.
*Images are for illustration only; actual product may vary.
