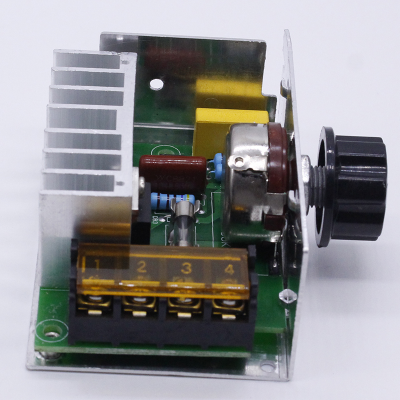

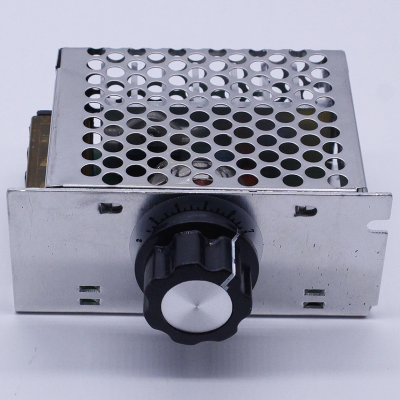

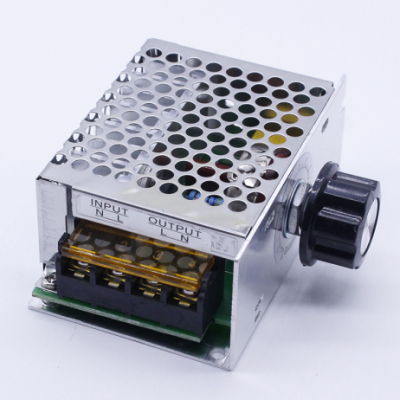

4000W Thyristor SCR Voltage Regulator Temperature Dimmer
Control appliances up to 4000W with this versatile SCR Dimmer for AC 220V devices.
- Input Voltage: AC 220V
- Maximum Power: 4000W
- Adjustable Voltage: AC 0V-220V
- Frequency Range: 50Hz ~ 60Hz
- Length (mm): 58
- Width (mm): 85
- Height (mm): 40
- Weight (gm): 123
Top Features:
- Control light dimming, fan speed, and temperature
- Easy to use with onboard potentiometer knob
- Suitable for electric furnace, water heater, lamps, and more
- Adjustable output voltage for various appliances
This 4000W Thyristor SCR Voltage Regulator is a versatile device that can be used as a light dimmer, fan speed controller, or stove temperature controller. It is easy to use and can control appliances up to 4000W. Simply connect your AC input to the module and the appliance to the output, then use the onboard potentiometer knob to adjust the power output of your 220V device.
It is suitable for various appliances such as electric furnace, water heater, lamps, small motor, and electric iron. The device can easily adjust electricity output and is equipped with a two-way high-power thyristor to prevent over-current problems. You can adjust the output voltage between 0-220 volts for different electrical appliances like furnaces, water heaters, light dimming, small motor speed, and electric iron thermostat.
To use the device, simply connect the AC supply at the input and the appliance at the output, then rotate the knob for dimming, speed control, voltage adjustment, or temperature control.
Package Includes:
- 1 x 4000W High-Power Thyristor Electronic Regulator
- Dimming Speed Regulation with Shell
Images are for illustration only; actual product may vary.
