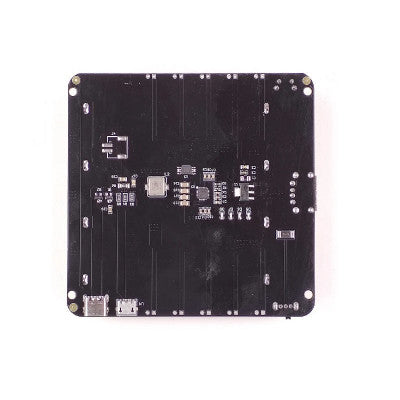

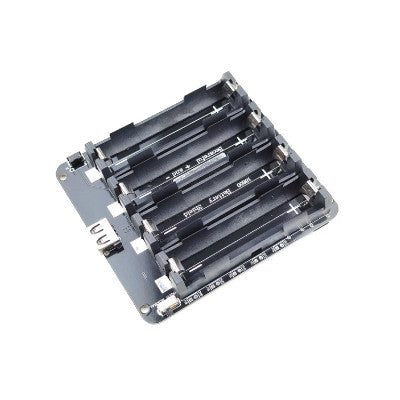

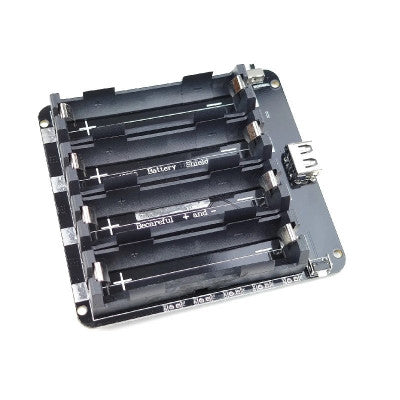

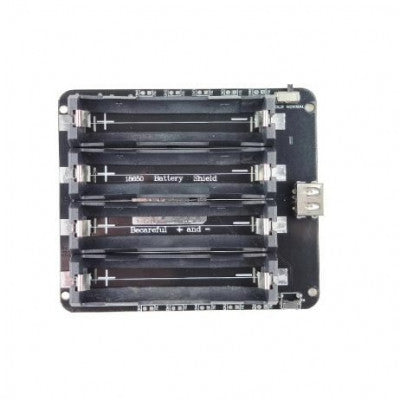

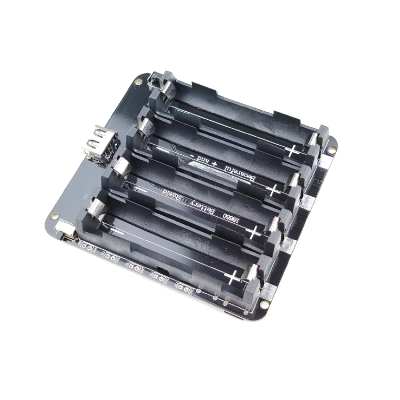

4x 18650 Lithium Battery Shield V8 V9 Mobile Power Expansion Board Module
Portable mobile power supply with built-in lithium battery protection IC
- Output Voltage: 3V/5V
- Output Port Type: USB or Expansion
- Input Port: MicroUSB
- Conversion Efficiency: 95%
- Length (mm): 100
- Width (mm): 90
- Height (mm): 20
- Weight (gm): 71
Top Features:
- Supports 3V 1A and 5V 3A voltage outputs
- Micro USB charging current: 600mA-800mA
- Supports up to two 18650 batteries
- Recommended to use two 18650 batteries for longer usage
This mobile power supply has a built-in lithium battery protection IC, providing overcurrent, overvoltage, and undervoltage protection. It supports 3V/1A and 5V/3A voltage outputs. The installation of the battery requires determining the positive and negative terminals, clearly marked on the board to avoid errors that may damage the module. The battery voltage operates normally between 3.2V to 4.2V. The 5V voltage output has a rated current of 3A, with a maximum support of 3.6A depending on the quality of the 18650 battery.
* Images are for illustration only; actual product may vary.
