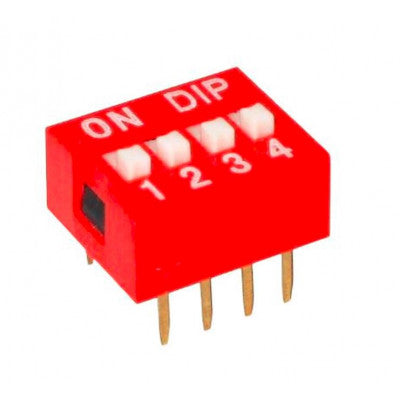

4 Way DIP Switch
An electronic component for easily controlling input to electronic devices.
- No of Pins: 4 way
- Type: DIP (Dual-In-Line)
- Max Operating Voltage: 50 VDC
- Max Current (Carrying Capacity): 150 mA DC
- Max Switching: 0.8 W
- Contact Resistance: <100 mΩ
- Insulation Resistance (at 100 VDC): >100 mΩ
- Test Voltage (1 minute): 500 VAC
- Life Expectancy: 1000 operations
- Operating Temperature: -20 to +80 C
- Mounting Type: Through Hole
- Pitch: 2.54 mm
Top Features:
- 4 position DIP switch
- SPDT slide switch
- Easy to mount on PCBs
- Forces operator to choose between two terminals
An electronic switch is an electronic component or device that can switch an electrical circuit, interrupting the current or diverting it from one conductor to another. The 4 position or 4 in 1, Dual In-Line Package (DIP) SPDT slide switch, also known as the traditional toggle switch, is a set of electrical switches packed in a small housing. This DIP single pole double throw (SPDT) switch requires the operator to choose between connecting to either one of two terminals, ensuring that the switch remains connected to one or the other, and the two terminals are never connected simultaneously. The switch is designed for easy mounting on printed circuit boards, providing various input ranges to electronic devices. Control the input effortlessly using the DIP switch.
Package Includes:
- 1 x 4 Way DIP Switch
* Images are for illustration only; actual product may vary.
