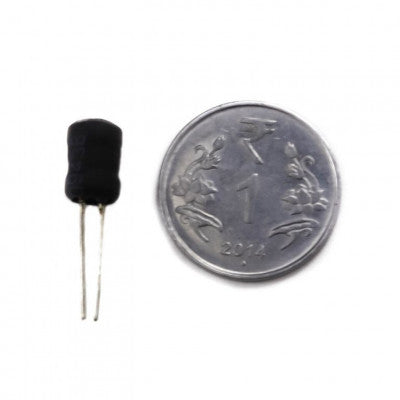

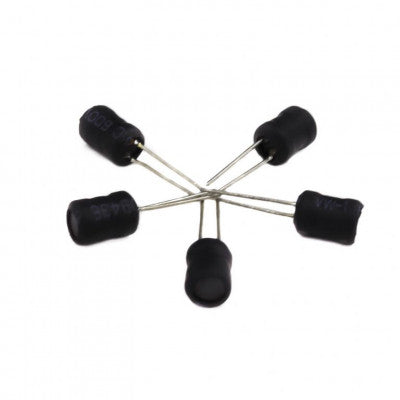

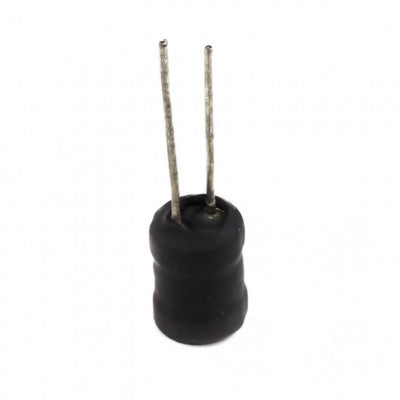

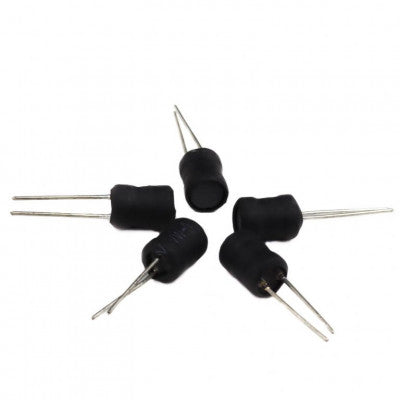

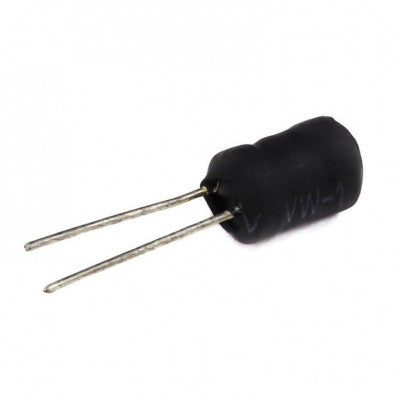

4.7mH 9x12mm Radial Leaded Power Inductor
A small choke coil power inductor with high Q factor and magnetic shielding.
- Inductance: 4.7mH
- Tolerance(%): 10
- Mounting Type: Through Hole
- DC Resistance (DCR)(m) at 20C: 1.8
- Current Rating (A): 0.27
- Frequency(Hz): 1000
- Operating Temperature Range (C): -40 to 85
- Length (mm): 9
- Width (mm): 12
- Weight (gm): 1 (approx)
Features:
- Small size
- High Q factor
- High self-resonance frequency
- Small magnetic flux leakage
The 4.7mH 9x12mm Radial Leaded Power Inductor is a small choke coil power inductor with a wire wound on the core (magnetic or air), and leads attached for through-hole mounting. It is used to limit the alternating current through the coil. Also known as a choke coil or differential mode inductors, it has good magnetic shielding and is RoHS free.
Applications:
- Motherboards for laptop and desktop computers
- DC/DC converter in distributed power systems or VRM Applications
- Inductor for general purpose use
* Images are for illustration only; actual product may vary.
