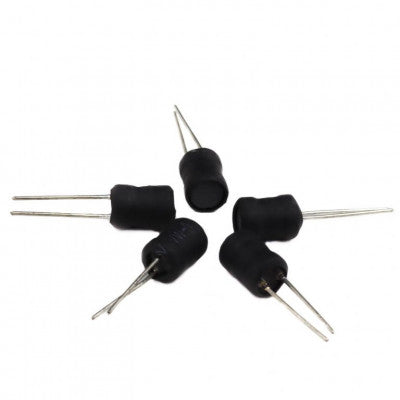

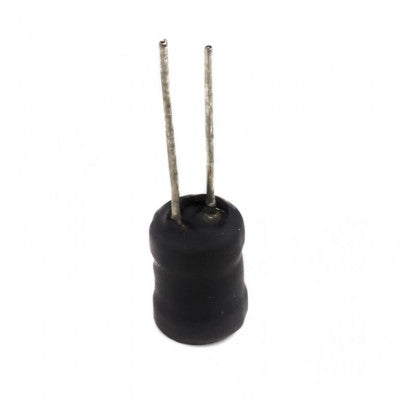

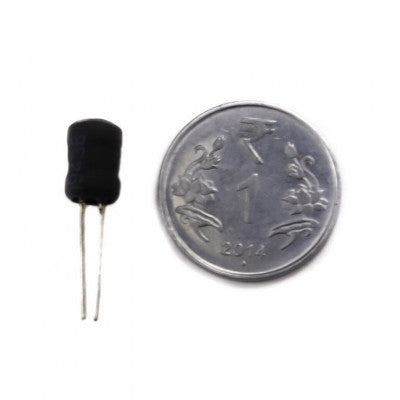

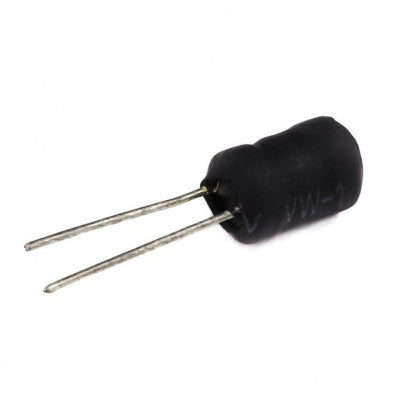

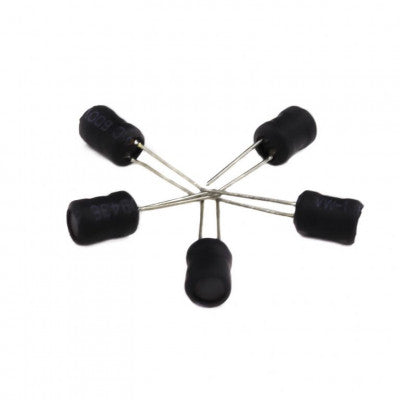

4.7mH 6x8mm Radial Leaded Power Inductor
A small choke coil power inductor with high Q factor and self-resonance frequency.
- Inductance: 4.7mH
- Tolerance(%): 10
- Mounting Type: Through Hole
- DC Resistance (DCR)(m) at 20C: 0.31
- Current Rating (A): 0.45
- Frequency(Hz): 1000
- Operating Temperature Range (C): -40 to 85
- Length (mm): 9
- Width (mm): 6
- Weight (gm): 1 (approx)
Features:
- Small size
- High Q factor
- High self-resonance frequency
- Small magnetic flux leakage
The 4.7mH 6x8mm Radial Leaded Power Inductor is a small choke coil power inductor with a wire wound on the core, suitable for through-hole mounting. It is commonly used in motherboards for laptop and desktop computers, DC/DC converters in distributed power systems or VRM applications, and general-purpose inductor applications.
The power inductor, also known as a choke coil or differential mode inductor, is designed to limit the alternating current through the coil. It offers a high Q factor, high self-resonance frequency, small magnetic flux leakage, good magnetic shielding, and is RoHS free.
Applications:
- Motherboards for laptop and desktop computers
- DC/DC converter in distributed power systems or VRM Applications
- Inductor for general purpose use
*Images are for illustration only; actual product may vary.
