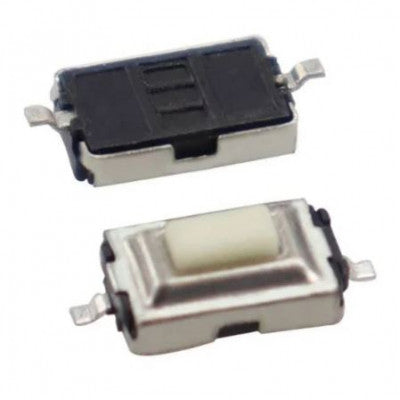

3x6x2.5mm SMD 2 Pin Tactile Switch
Widely used surface mount tactile switch for electronic projects.
- Switch Type: Momentary
- Contact Type: Solder Type
- Mounting Type: SMD/SMT
- Voltage(V): 12
- Operating Current (A): 0.05
- Contact Resistance: 100m? (Max.)
- Insulation Resistance (M?): 100
- Operation Force: 1.56 +/- 0.5 N
- Operation Stroke: 0.25+0.2/-0.1mm
- Operating Temperature Range (°C): -25 to 70
- Storage condition (°C): -30 to 80
- Length (mm): 6.4
- Width (mm): 3
- Height (mm): 2.5
Features:
- Surface mount design
- High operating force (3.0N or 3.6N)
- Long life of 300,000 cycles
- Waterproof and anti-static interference
This switch is widely used in telecommunications, consumer electronics, audio/visual, medical devices, testing/instrumentation, and computer/peripherals. It offers reliable dome contact technology and strong tactile feedback with multiple operating forces to choose from. The pins are normally open and close the circuit when pressed.
Compact and lightweight, this switch is easy to carry and dismantle. Its high precision mechanism design ensures acute operation and long service life, making it suitable for electronic products, household appliances, and more.
Images are for illustration only; actual product may vary.
