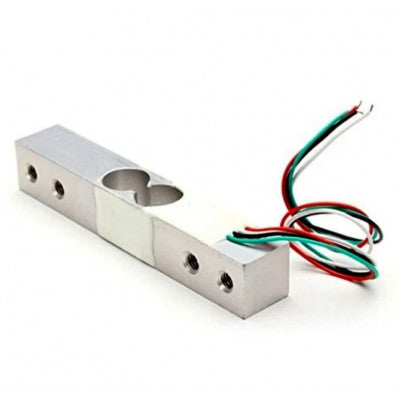

Standard Load Cell for Weight Measurement
An essential transducer with 3 KG capacity for accurate weight measurement
A load cell is a transducer that is used to create an electrical signal whose magnitude is directly proportional to the force being measured. The various types of load cells include hydraulic load cells, pneumatic load cells and strain gauge load cells. This is a standard load cell for measuring weight upto 3 Kg.
The output of the load cell is in milli-volts and cannot be directly measured by a micro-controller. So an ADC with high resolution or an instrumentation amplifier is required to make the output of the load cell readable to a micro-controller.
- Capacity: 3KG
- Rated output(MV/V): 2.0±0.15
- Accuracy class: C2
- Maximum number of load cell verification intervals(N max): 2000
- Minimum number of load cell verification intervals(Vmin): EMax/5000
- Combined error(%RO): <±0.030
- Creep(%RO/30min): 0.03
- Temperature effect on sensitivity(%RO/°C): 0.0016
- High-capacity load measurement upto 3KG
- Remarkable accuracy with C2 accuracy class
- Perfect for micro-controller applications
- High insulation resistance
Applications of this load cell can vary greatly - from being installed in electronic platform scales to digital scales, parcel post scales, and electronic balances.
