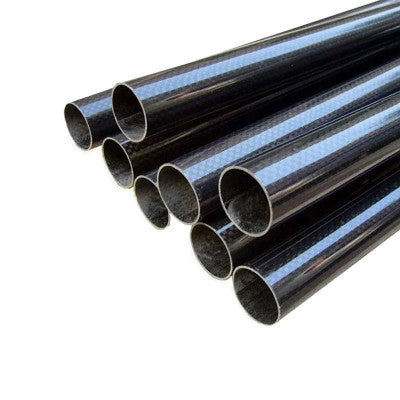

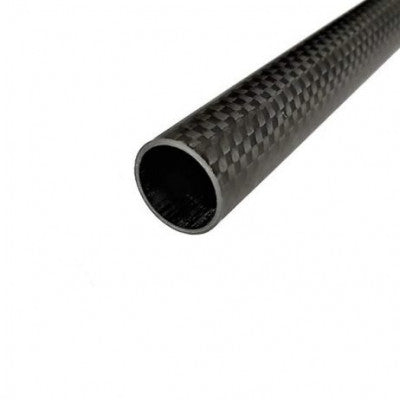

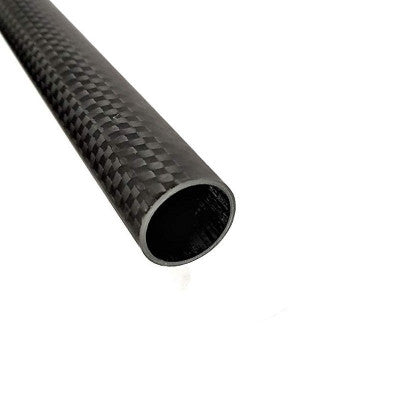

20mm Roll Wrapped Carbon Fibre Tube
Replace aluminium or steel tubes with this strong and light carbon fibre tube.
- Production process: Roll-Wrapped
- Thickness: 1mm
- Material finish: 3K glossy twill surface
- Density: 1.5 g/cm
- Maximum Temperature: 130°C
- Inner Diameter (ID): 18mm
- Outer Diameter (OD): 20mm
- Length: 500mm
- Dimensions (LxWxH): 20x18x500 mm
Features:
- Carbon Fiber material
- High Strength
- Stable dimension and UV resistant
- High Corrosion Resistance
Carbon fibre tubes offer superior strength compared to aluminium or steel tubes of the same weight. The use of high modulus unidirectional prepreg carbon fibre provides maximum strength in the lateral axis. Roll wrapped tubes are stronger in general use than pultruded tubes. The tube's strength is along its length, so avoid unnecessary crushing forces across the tube.
The roll-wrapping process involves laying up prepreg carbon fibre around a mandrel in multiple layers. The reinforcement is then spiral-wrapped with heat-shrink tape and oven-cured for durability.
Package Includes: 1 x 3K Roll-wrapped Carbon Fiber Tube Hollow-20mm-ODx18mm-IDx500mm
Images are for illustration only; actual product may vary.
