10mm Roll Wrapped Carbon Fiber Tube
A strong and lightweight alternative to aluminum or steel tubes.
- Production process: Roll-wrapped
- Thickness of material: 1mm
- Material finish: 3K glossy twill surface
- Different densities: 1.5g/cm^3
- Glass Transition Temperature: 130°C
- Inner Diameter (mm): 14
- Outer Diameter (mm): 16
- Length (mm): 330
Features:
- Carbon Fiber material
- High Strength
- Stable dimension and UV resistant
- High Corrosion Resistance
Carbon Fiber tube can be used to replace aluminum or steel tubes in a wide range of projects. The Carbon Fiber tube of the same weight as an aluminum or steel tube can be much stronger and lighter. This 10mm roll wrapped Carbon Fiber tube is manufactured predominantly using high modulus (T700) unidirectional prepreg Carbon Fiber oriented to provide maximum strength in the lateral axis. Roll wrapped Carbon Fiber tubes offer superior strength in general use to pultruded tubes which have all their Fibers running in exactly the same direction. The use of unidirectional Fibers and maximum strength in the lateral axis does mean that the tube is not as strong across its diameter as it is along its length so should be used in such a way as to avoid unnecessary crushing forces across the tube.

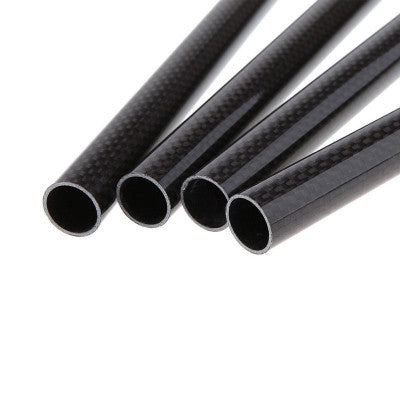

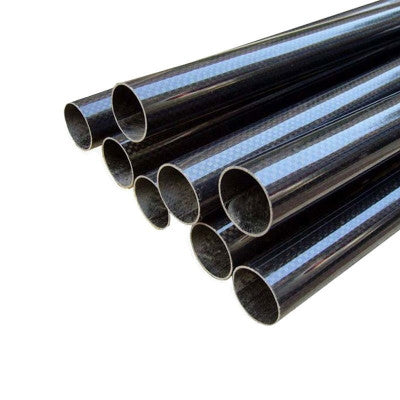

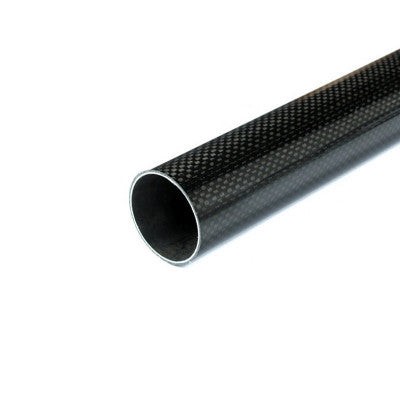

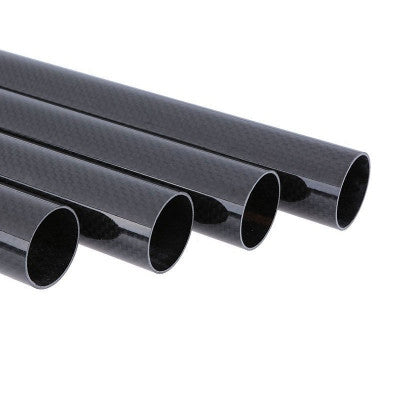

Package Includes: 1 x 3K Roll-wrapped Carbon Fiber Tube (Hollow) 16mm(OD) x 14mm(ID) x 330mm(L)
*Images are for illustration only; actual product may vary.
