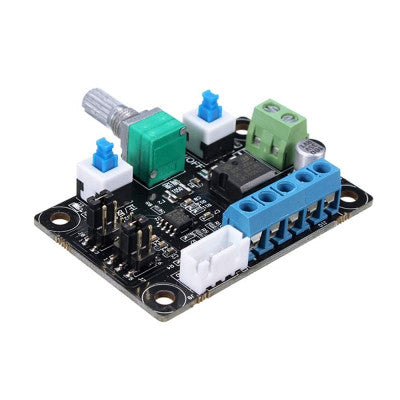

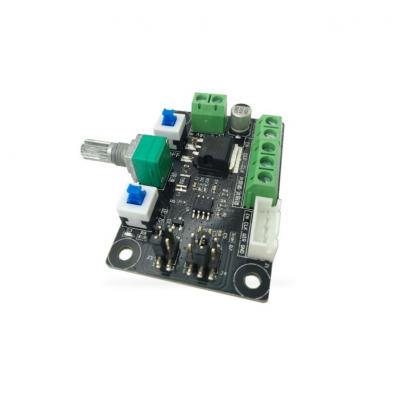

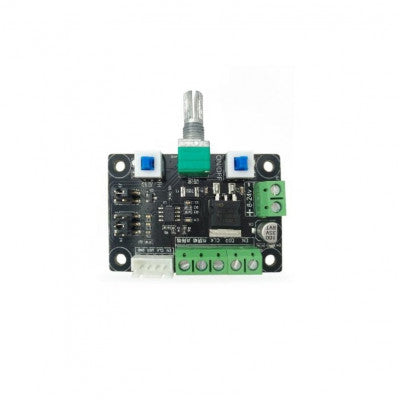

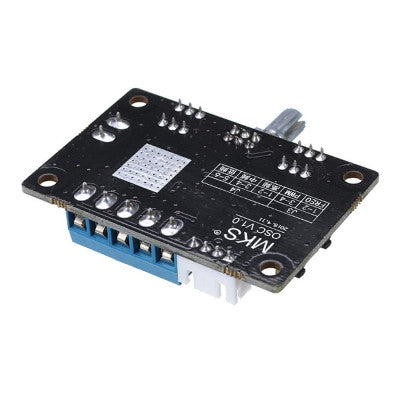

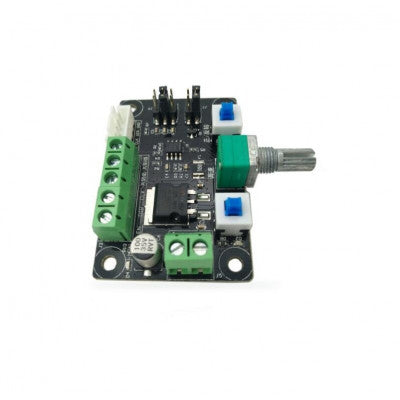

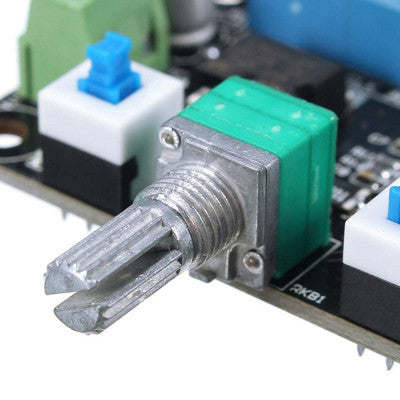

3D Printer MKS OSC Stepper Motor Controller Pulse PWM Speed Reversing Module
A versatile pulse generating module for stepper motor control.
- Frequency Signal: 5.4k-160khz, 540-16.6khz, 80-2.4khz
- Signal Types: Pulse, PWM
- Support: Skipping stitch choice
- Ports: PUL and common-cathode for frequency measurement
Top Features:
- Multiple frequency signal options
- Pulse and PWM signal generation
- Supports skipping stitch choice
- Easy control platform setup
This 3D Printer MKS OSC Stepper Motor Controller Pulse PWM Speed Reversing Module is a pulse generating module, which is used as a signal for stepper drivers. To control the stepper motor, it must be equipped with the driver. The module can be used as Easy controller + stepper driver + stepper motor + DC power composed a simple control platform.

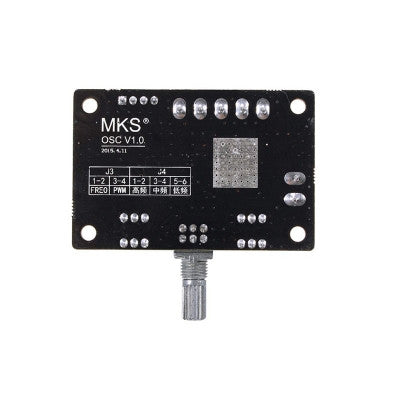

It consists of 3 kinds of frequency signal, including 5.4k-160khz, 540-16.6khz, 80-2.4khz, which can be chosen. Support generating a pulse and PWM signal, support skipping stitch choice. For frequency measurement there are two ports of PUL and common-cathode (or common anode) can be measured.

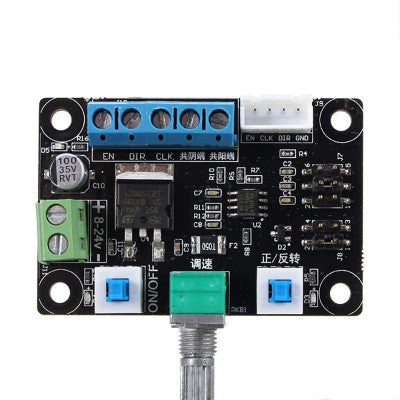

Different stepping motor driver different port sign, but same functionEN=ENA=FREE Enable PUL=PULS=CLK Pulse DIR=CW=CWW DirectionCommon anode connection (connect with B)EN+ PUL+ DIR+ all link together to common anode port EN- connect to EN PUL- connect to CLK DIR- connect to DIRCommon cathode connection (connect with B)EN- PUL- DIR- all link together to common cathode port EN+ connect to EN PUL+ connect to CLK DIR+ connect to DIR
- Package Includes: 1 x 3D Printer MKS OSC Stepper Motor Controller Module
Images are for illustration only; actual product may vary.
