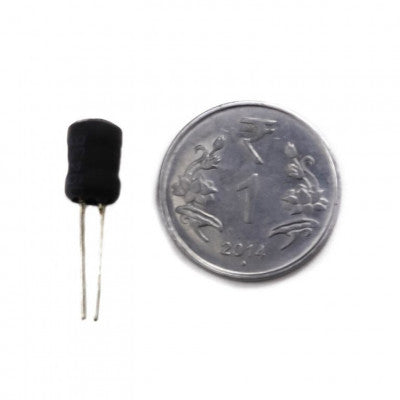

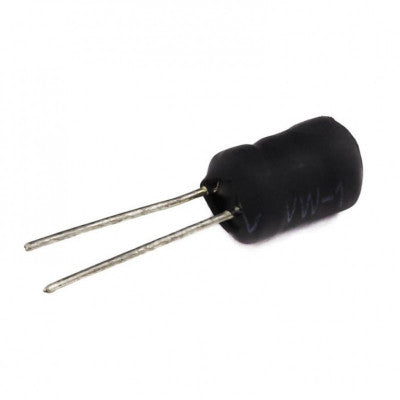

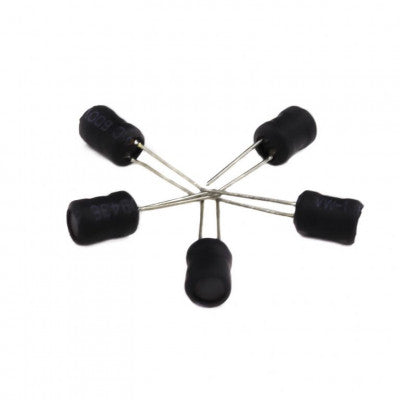

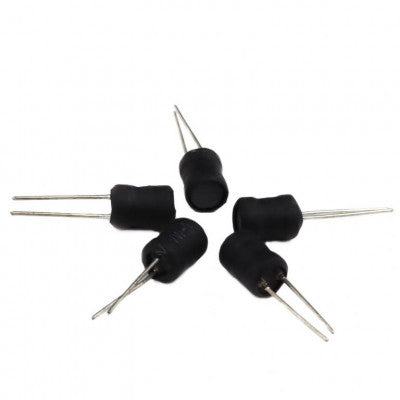

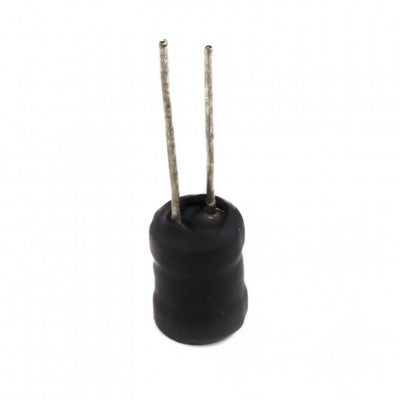

330uH 6x8mm Radial Leaded Power Inductor
A small choke coil power inductor with high Q factor and self-resonance frequency.
- Inductance: 330uH
- Tolerance(%): 10
- Mounting Type: Through Hole
- DC Resistance (DCR)(m) at 20C: 0.95
- Current Rating (A): 0.3
- Frequency(Hz): 1000
- Operating Temperature Range (C): -40 to 85
- Length (mm): 9
- Width (mm): 6
- Weight (gm): 1 (approx)
Features:
- Small size
- High Q factor
- High self-resonance frequency
- Small magnetic flux leakage
The 330uH 6x8mm Radial Leaded Power Inductor is a wire wound on the core (magnetic or air) with leads attached for through-hole mounting. Also known as a choke coil or differential mode inductor, it limits the alternating current through the coil. This power inductor is ideal for applications in motherboards for laptop and desktop computers, DC/DC converters in distributed power systems or VRM applications, and general-purpose use.
It offers good magnetic shielding, is RoHS free, and has a high Q factor and self-resonance frequency, with small magnetic flux leakage.
Applications:
- Motherboards for laptop and desktop computers
- DC/DC converter in distributed power systems or VRM Applications
- Inductor for general purpose use
Package Includes: 1 x 330uH 6x8mm Radial Leaded Power Inductor
* Images are for illustration only; actual product may vary.
