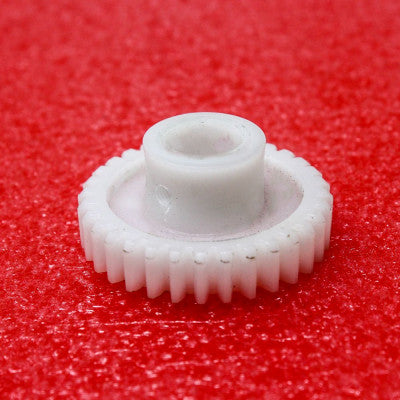

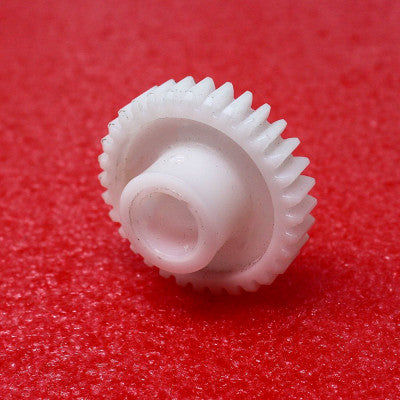

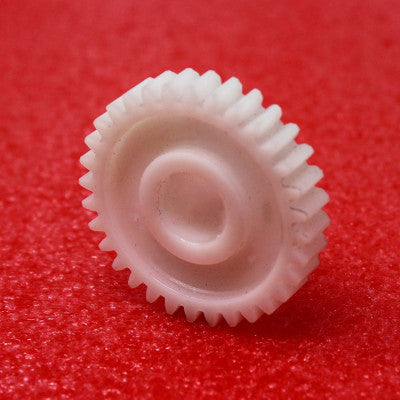

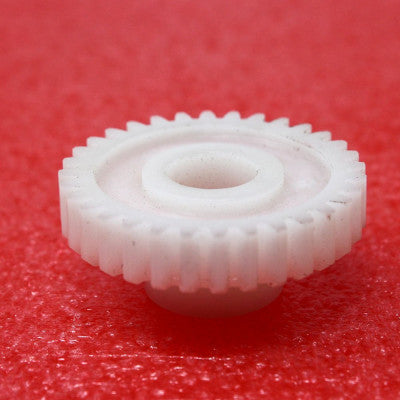

Nylon Spur Gears
Nylon spur gears offer lightweight, durable, and quiet operation for various applications.
- Model: 1M-32T-8-32
- Gear Structure: Spur
- Pitch (Module): 1
- No. of teeth: 32
- Face Width (FW) mm: 6.95
- Total Width (W): 14.42
- Internal Diameter (ID) mm: 9.9
- Outside Diameter (OD) mm: 33.67
- Pitch Circle Diameter (PCD) mm: 32
- Gear Material: Nylon
- Color: White
- Weight (gm): 6
Features:
- Good Quality Material
- Light Weight
- Heavy Duty and Long Life
- Good Temperature and Environmental Resistance
Gears play a huge role in much of the technology around today. Nylon spur gears, made from engineering plastics like polyacetal and MC Nylon, offer weight reduction in machine design, quiet operation, vibration absorption, and do not require lubrication. They are commonly used to reverse rotation direction, transfer rotational motion to a different axis, and alter the speed of rotation to adjust turning force or torque.
Package Includes: 1 x Nylon Spur Gear (1M-32T-10-32)
* Images are for illustration only; actual product may vary.
