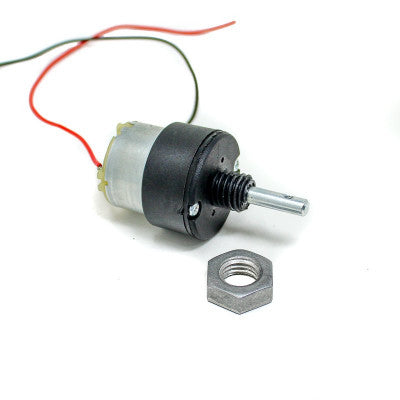

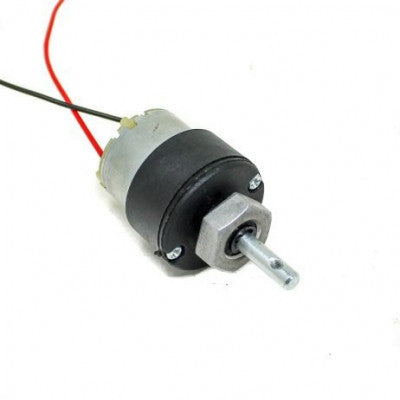

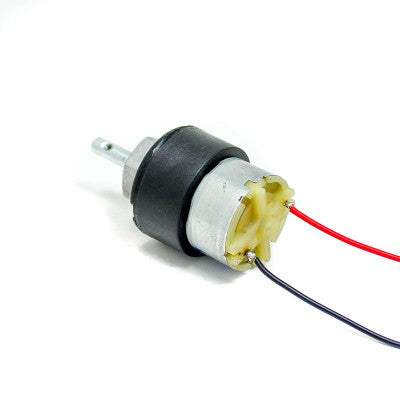

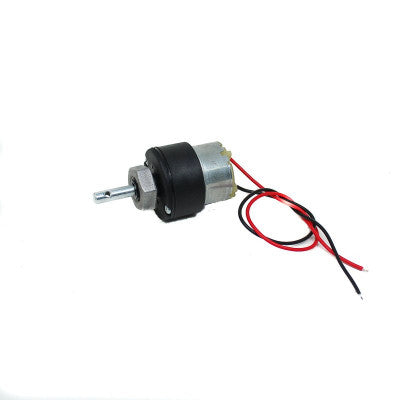

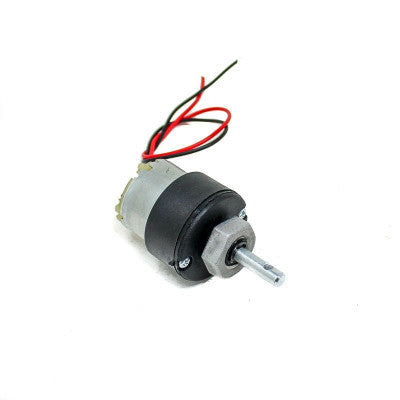

30RPM 12V Low Noise DC Motor With Metal Gears Grade A
High-quality DC motor with metal gears for optimal performance
- Gear Material: Metal
- Rated Speed (RPM): 30
- Operating Voltage (VDC): 12
- Rated Torque (kg-cm): 5.7
- Stall Torque (Kg-Cm): 20.5
- Load Current Max (mA): 300
- No-Load Current (mA): 60
- Gearbox Diameter (mm): 38
- Motor Diameter (mm): 32
- Motor Length (mm): 75
- Shaft Diameter (mm): 6
- Shaft Length (mm): 21
- Weight (gm): 75
Top Features:
- Good Quality Gears
- Metal gears for durability

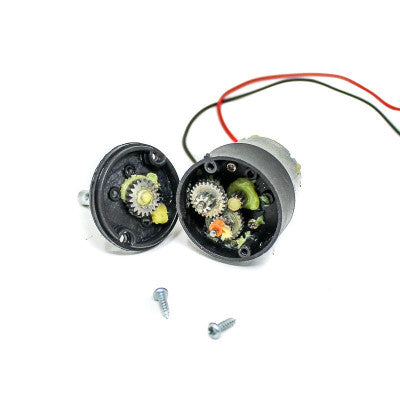

- Sealed and lubricated gearbox
- Wide operating voltage range (4V to 12V)
These Center Shaft DC Geared Motors are designed for easy use in various robotic applications. The motor shaft extends through the gearbox assembly, making it simple to connect to wheels or other mechanical assemblies. The motor can be smoothly operated between 4V to 12V, providing a wide range of RPM and torque. The shaft features a hole for better coupling, and the gearbox is sealed and lubricated with lithium grease, requiring no maintenance.
The DC Motor 30RPM 12Volts is suitable for all-terrain robots and a variety of robotic projects. It features a 3mm threaded drill hole in the middle of the shaft for easy connectivity. The motor can be controlled using an L298N H-bridge module with an onboard voltage regulator motor driver, supporting a voltage range of 5 to 35V DC.
Nut and threads on the shaft allow for easy connection, and the internally threaded shaft simplifies the process of connecting it to wheels or other mechanical components.
* Images are for illustration only; actual product may vary.
