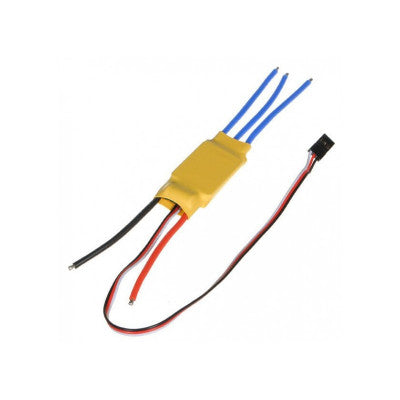

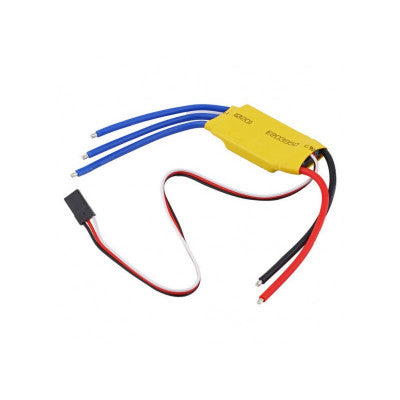

30A BLDC ESC Electronic Speed Controller
A high-performance ESC designed for quadcopters and multi-rotors.
- Model: STANDARD 30A BLDC ESC Electronic Speed Controller
- Weight: 23g
- Dimensions: 45 x 24 x 9 mm (LxWxH)
- Color: Yellow/Red (Depends on Availability)
- Current (A): 30A
- BEC: 3A
- Li-Poly: 2-3
- Ni-Mh/Ni-CD: 4-10 Ni-Mh
- Constant Current: 30A Max 40A <10s
- Li-Poly 2-3 CELLS; Ni-MH 4-10 CELLS Auto Detect
- Break On/Off
- Auto Low BATTERY Slow down at 3.0V/cell Lipo, cut-off at 2.9V/cell lipo
- Application: Multirotors, Rc Airplanes, etc.
Top Features:
- Faster and better motor speed control
- Recommended for A2212 brushless motor
- Onboard BEC for regulated 5V (2A max draw)
- Works with 2S-3S LiPo batteries
The 30A BLDC ESC Electronic Speed Controller is specifically designed for quadcopters and multi-rotors, offering superior motor speed control for enhanced flight performance. It can handle motors consuming up to 30A current and is compatible with 2S-3S LiPo batteries. The onboard BEC provides a regulated 5V (2A max draw) to power the flight controller and other modules onboard.
This ESC is recommended for use with the A2212 brushless motor variants (1000kv, 1400kv, 2200kv), ensuring optimal performance and compatibility. It features a lightweight design, weighing only 23g, and compact dimensions of 45 x 24 x 9 mm (LxWxH). The color may vary between Yellow and Red based on availability.
With a current rating of 30A and a BEC output of 3A, this ESC offers reliable and efficient power management for your aerial vehicles. It supports Li-Poly 2-3 cells and Ni-MH/Ni-CD 4-10 cells, with auto-detection capabilities for easy setup. The ESC also includes features like Break On/Off and Auto Low Battery protection, ensuring safe and smooth operation.
Whether you are building a multirotor or an RC airplane, the 30A BLDC ESC Electronic Speed Controller is a versatile choice for your electronic speed control needs.
Package Includes:
- 1 x Standard 30A BLDC ESC Electronic Speed Controller
Images are for illustration only; actual product may vary.
