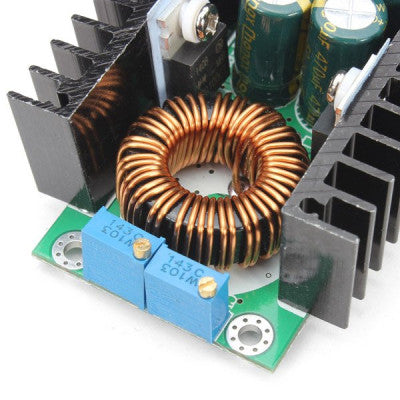

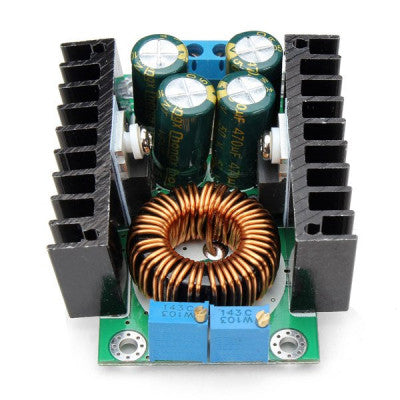

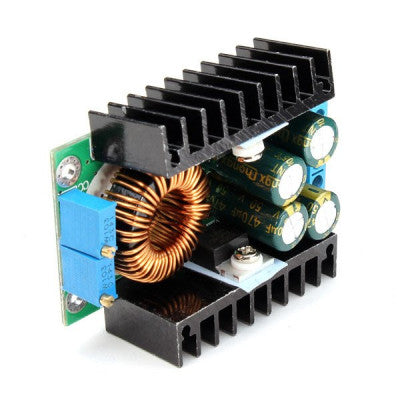

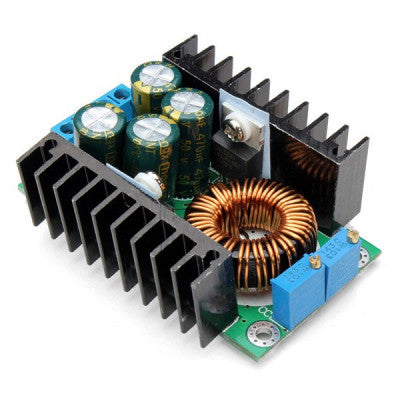

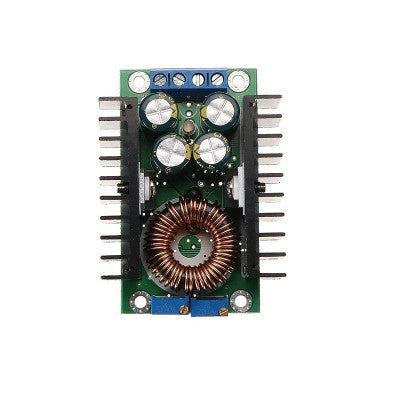

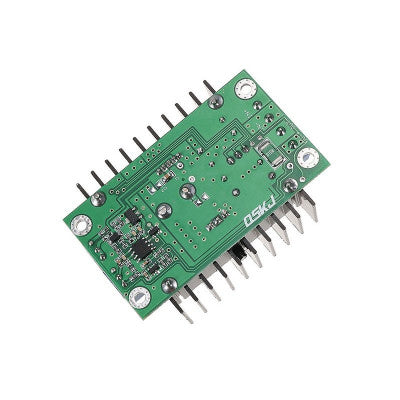

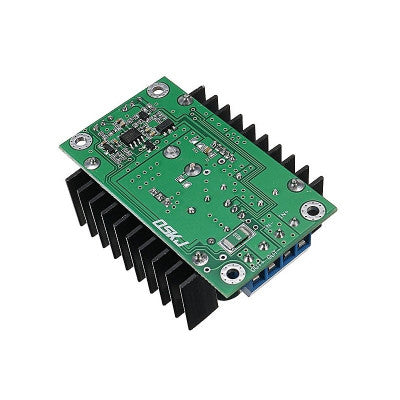

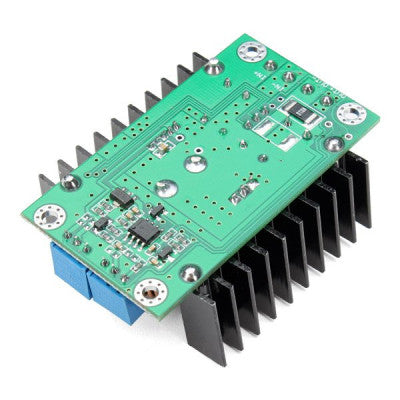

300W 10A DC-DC Step-down Buck Converter Adjustable Constant Voltage Module
Adjustable output voltage range from 1.5V to 35V with up to 10A current output
- Input Supply voltage (V): 7 ~ 40
- Output voltage (V): Continuously adjustable (1.25 ~ 35)
- Output Current (A): 8A (10A maximum)
- Conversion efficiency: 95%
- Operating frequency (KHz): 300
- No-load current: Typical 20mA
- Load regulation: 1%
- Voltage Regulation: 1%
- Length (mm): 65
- Width (mm): 47
- Height (mm): 22
- Weight (gm): 70
Top Features:
- Wide range of adjustable output voltage
- High precision current sensing resistor
- Double heat sink design for efficient heat dissipation
- Onboard multiturn potentiometers for accurate regulation
The 300W 10A DC-DC Step-down Buck Converter Module is designed for various applications such as high-power LED drivers, battery charging, and vehicle power supply. It offers stable constant current output and adjustable voltage and current settings for flexibility.
For detailed adjustment instructions and charger application guidelines, refer to the provided instructions. Ensure proper cooling measures are taken if the module temperature exceeds 65C.
Applications:
- High-power LED driver
- Lithium battery charge
- Vehicle-mounted power supply
- Low voltage system power supply
- 6V, 12V, 14V, 24V battery charge
- On-board laptop power supply
- Regulated power supply
- Low voltage power supply system
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com +91-8095406416
*Images are for illustration only; actual product may vary.
