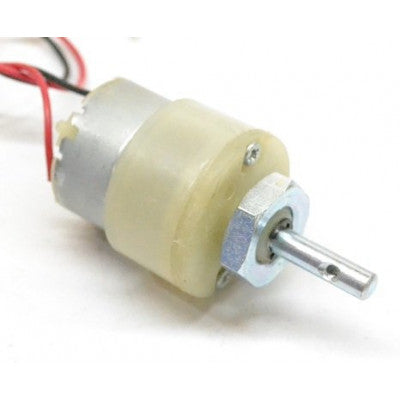

DC Motor – 300RPM – 12Volts
Perfect for robotics applications with a 300 RPM speed and 12V operating voltage.
- RPM: 300
- Operating Voltage: 12V DC
- Gearbox: Attached Plastic (spur)Gearbox
- Shaft diameter: 6mm with internal hole
- Torque: 2 kg-cm
- No-load current: 60 mA (Max)
- Load current: 300 mA (Max)
Top Features:
- Robust metal gearbox for heavy-duty applications
- Easy to connect with nut and threads on the shaft
- Internal threaded shaft for connecting to wheels
- Wide RPM range ideal for robotics and industrial use
Geared motors are essentially simple DC motors with a gearbox attached, making them suitable for all-terrain robots and various robotic applications. The 3 mm threaded drill hole in the shaft allows easy connection to wheels or other mechanical assemblies.
These 300 RPM 12V DC geared motors are widely used in robotics applications due to their ease of use and standard size. You can control these motors with an Arduino or compatible board without spending a lot of money. The popular L298N H-bridge module with an onboard voltage regulator motor driver is compatible with this motor, operating between 5 and 35V DC. Alternatively, you can choose a precise motor driver module from our wide range to meet your specific requirements.
DC Geared motors with a robust metal gearbox are designed for heavy-duty applications and are available in a wide RPM range, making them ideal for robotics and industrial use. The nut and threads on the shaft facilitate easy connection, while the internally threaded shaft allows for simple attachment to wheels.
*Images are for illustration only; actual product may vary.
