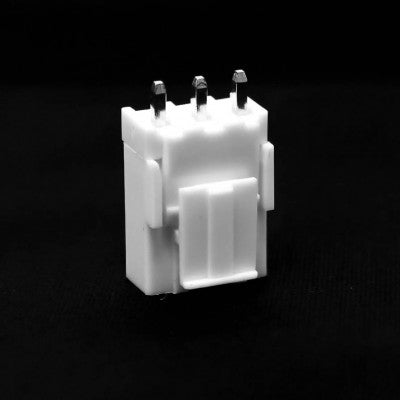

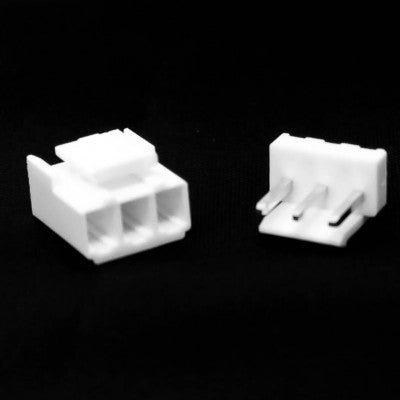

3 Pins 3.96mm JST-VH Connector With Housing
An electrical connector ideal for battery packs and servos.
- Gender: Male-Female
- Rated Operating Voltage (VDC): 250
- Current Handling Capacity (A): 3
- No. of Contact Points: 3
- Connector Type: JST XH
- Contact Material: Phosphor Bronze
- Contact Plating: Nickel
- Metal Connector Size (mm): 7.5
- Operating Temperature Range (C): -25 to 85
- Flammability Rating: UL94V-0
- Color: White
- Length (mm): 12
- Width (mm): 8
- Height (mm): 19
- Weight (gm): 1 (each)
- Allowed Wire Size (AWG): 30 ~ 22
Features:
- 1.1 mm contact point pin width
- Good quality plastic
- Nickel-plated terminals
- Ideal for battery packs and servos
The 3 Pins 3.96mm JST-VH Connector With Housing is an electrical connector designed for use in rechargeable battery packs, radio-controlled servos, battery balancers, and more. It is constructed from high-quality plastic with nickel-plated terminals. This package includes 5 pairs of male and female connectors.

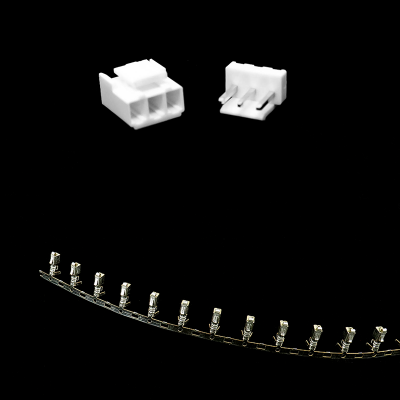

Package Includes: 5 x 3 Pins 3.96mm JST-VH Connector With Housing.
* Images are for illustration only; actual product may vary.
