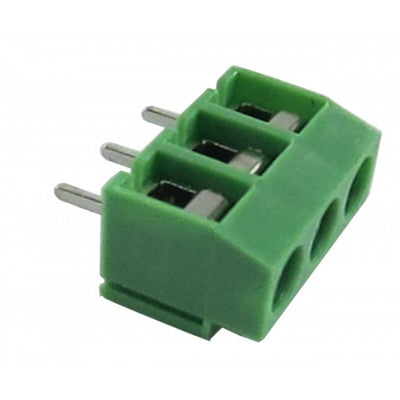

3 Pin 5.08mm Pitch Screw Terminal Block
A compact and versatile terminal block for connecting wires to PCBs.
- Connector: PCB Terminal Block
- Termination: Screw
- No. of Contacts: 3
- Allowed Wire Size (AWG): 22 ~ 12
- Voltage(V): 320
- Operating Current (A): 6
- Mounting Type: Through Hole
- Pin Spacing (mm): 5.08
- Material: Metal and plastic
- Length (mm): 10
- Width (mm): 10
- Height (mm): 18
- Weight (gm): 4 (each)
Features:
- Saves space due to the small design
- Screw connection with tension sleeve
- Maximum contact force ensures a low-temperature rise
- Connection in accordance with EN-VDE Standard
The 3 Pin 5.08mm Pitch Screw Terminal Block is ideal for miniature rack systems or telecoms equipment requiring high contact density. It allows for the connection of two conductors on a PCB, accommodating wires from 12 to 22 AWG. The terminal block's screws securely hold the wires in place.
Each terminal has a single corresponding pin spaced every 5.08mm, making it compatible with prototyping boards and PCB holes designed for standard 5.08mm male and female headers, provided there is sufficient clearance from nearby components.
* Images are for illustration only; actual product may vary.
