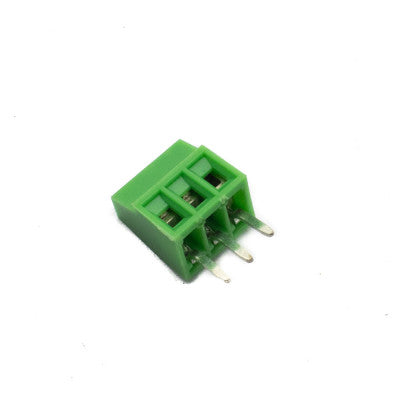

3 Pin 2.54 mm Pitch Pluggable Screw Terminal Block
A compact and versatile terminal block for connecting wires to PCBs.
- Connector: PCB Terminal Block
- Termination: Screw
- No. of Contacts: 3
- Allowed Wire Size (AWG): 22 ~ 12
- Voltage(V): 320
- Operating Current (A): 3
- Mounting Type: Through Hole
- Pin Spacing (mm): 2.54
- Material: Metal and plastic
- Length (mm): 9
- Width (mm): 7.5
- Height (mm): 12
Features:
- Saves space due to the small design
- Screw connection with tension sleeve
- Maximum contact force ensures a low-temperature rise
- Connection in accordance with EN-VDE Standard
This terminal block has screws to keep the wires in place and can hold wires from 14 to 22 AWG. It is ideally suited for miniature rack systems or telecoms equipment requiring high contact density. The terminal blocks can be used with prototyping boards and PCB holes intended for standard 0.1 male and female headers, provided there is sufficient clearance from nearby components.
Images are for illustration only; actual product may vary.
