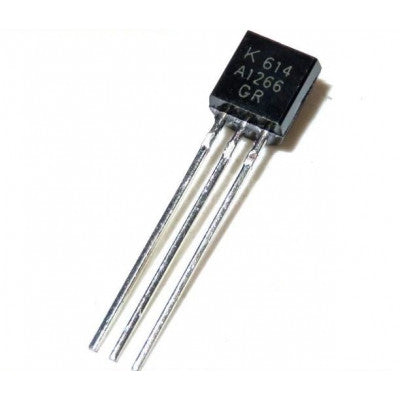

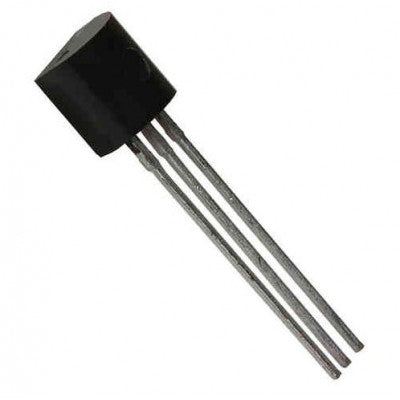

2SA1266 Semiconductor Transistor
A semiconductor device for amplifying or switching electronic signals and power.
- Transistor Polarity: PNP
- Collector-Base Voltage (VCBO): 50V
- Collector-Emitter Voltage (VCEO): 50V
- Emitter-Base Voltage (VEBO): 5V
- Continuous Collector Current (IC): 150mA
- Emitter Current (IE): 150mA
- Transition Frequency (fT): 80MHz
- DC Current Gain (hFE): 70-400
- Operating Temperature Range: -55 - 125°C
- Power Dissipation (PD): 400mW
Features:
- Advanced process technology
- Low error voltage
- Fast switching speed
- Full-voltage operation
2SA1266 is composed of semiconductor material with at least three terminals for external circuit connection. It allows control of current through one pair of terminals with voltage or current applied to another pair, enabling signal amplification.
Some transistors are individually packaged, while many are integrated into circuits, showcasing the versatility of this component in various applications.
For more details or bulk pricing inquiries, contact our sales team directly at sales02@thansiv.com or call +91-8095406416.
* Images are for illustration only; actual product may vary.
