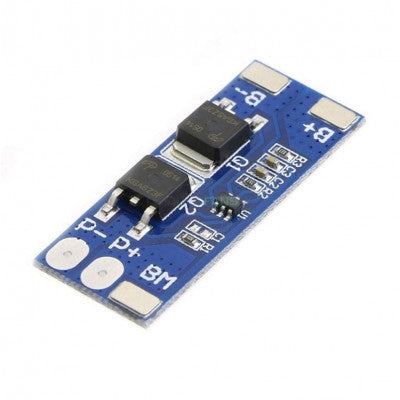

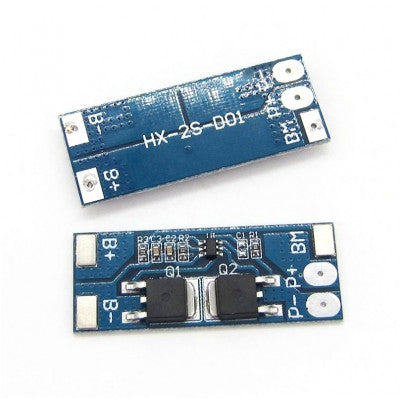

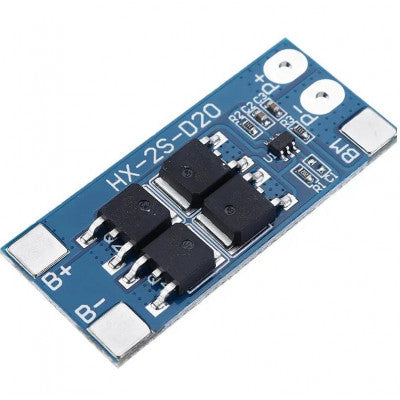

2S 10A Li-ion Lithium Battery 7.4V 8.4V 18650 Charger Protection Board Module
A small PCB mounted Li-ion Lithium Battery charger protection module with various features.
- Charging Voltage: 8.4V-9V
- Charging Voltage Range per Cell: 4.25-4.35V±0.05V
- Discharge Voltage Range: 2.5-3V±0.05V
- Maximum Working Current: 8A
- Working Temperature: -40~+50°C
- Limit Instantaneous: 10A
- Temperature Range for Storage: -40~+80°C
- Static Electricity: <10uA
- Useful Life: >50000H
- Internal Resistance: <300m?
- Length (mm): 40.70
- Color: Blue/Green
- Width (mm): 16
- Height (mm): 4
- Weight (gm): 6
Top Features:
- Short circuit protection
- Overcharge protection
- Over-discharge protection
- Overcurrent protection
This small and smart battery charger protection module is easy to install and convenient for all your DIY portable projects. It comes in two different colors, Green and Blue, shipped randomly based on availability.
Pin Descriptions:
- B+ B-: The interface of battery core
- P+ P-: The connector of the battery board
- MB: The connection point between the batteries
- B+: Battery V+ Positive
- B-: Battery V- Negative
- P+: Output / Charging V+
- P-: Output / Charging V-
Caution: The protection board is not suitable for lithium iron phosphate batteries, hernia lamps, hand drill battery packs, electric fish battery packs, electric bicycle battery packs, buggy batteries, 775 (4A) above the motor, 1W fisheye LED lamps.
Package Includes: 1 x 2S 10A 18650 7.4V-8.4V Lithium Battery Protection Board
* Images are for illustration only; actual product may vary.
