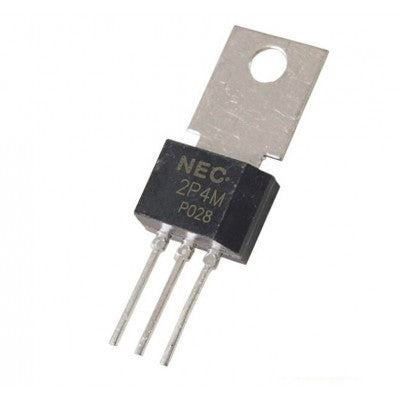

2P4M to 2P6M P-Gate Diffused Plastic Molded SCR
P-gate SCR with 2A on-state current and voltage up to 600V
- VRSM: 500V
- VDSM: 500V
- VRRM: 400V
- VDRM: 400V
- IT(AV): 2A (Tc=77°C)
- ITSM: 20A
- PGM: 0.5W (f ? 50Hz, Duty ? 10%)
- PG(IAV): 0.1W
- IFGM: 0.2A (f ? 50Hz, Duty ? 10%)
- VRGM: 6V
- Tj: -40 to 125°C
- Tstg: -50 to 150°C
- Weight: 1.4g
Top Features:
- Easy installation with miniature size and thin electrode leads
- Free application design due to low holding current distribution
- Cost-effective thanks to mass-production
Applications:
- Electric blanket and electronic jar
- Temperature control systems
- Electric sewing machine and miniature motor speed control
- Lamp dimmers and light display equipment
- Entertainment display applications
- Automatic gas lighters and battery chargers
- Solid-state static switches
*Images are for illustration only; actual product may vary.
