2N6027
Designed to enable programming of unijunction characteristics for various applications
- Gate to Cathode Forward Voltage (VGKF): 40V
- Gate to Cathode Reverse Voltage (VGKR): 5V
- Gate to Anode Reverse Voltage (VGAR): 40V
- Anode to Cathode Voltage (VAK): 40V
- Offset Voltage (VT): 1.6V
- DC Forward Anode Current (IT): 150mA
- DC Gate Current (IG): 50mA
- Non-Repetitive Peak Forward Current (ITSM): 5A
- Operating Temperature Range: -50 - 100°C
- Power Dissipation (PD): 300mW

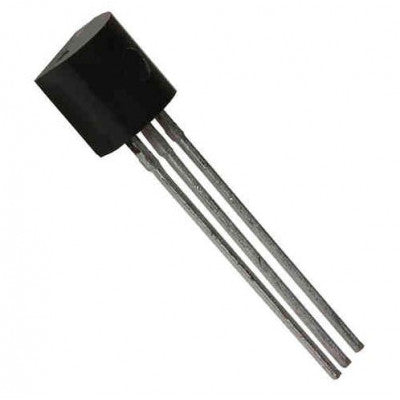

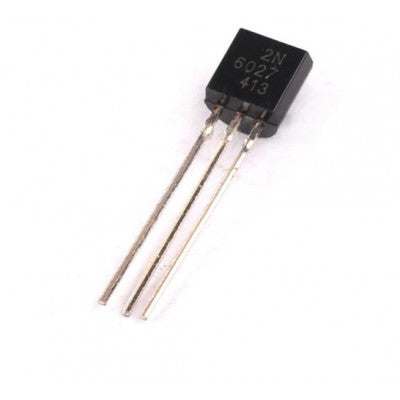

- Packaging: TO-92 plastic package
Features:
- Advanced process technology
- Low error voltage
- Fast switching speed
- Full-voltage operation
Application includes thyristor trigger, oscillator, pulse and timing circuits. These devices may also be used in special thyristor applications due to the availability of an anode gate. Supplied in an inexpensive TO-92 plastic package for high-volume requirements, this package is readily adaptable for use in automatic insertion equipment.
**Images are for illustration only; actual product may vary.**
