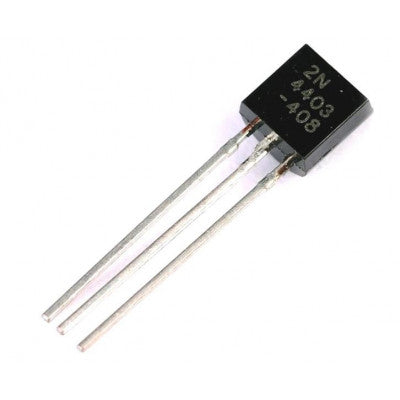

2N4403 Transistor
Semiconductor device for amplifying or switching electronic signals
- Transistor Polarity: PNP
- Collector-Base Voltage (VCBO): 40VDC
- Collector-Emitter Voltage (VCEO): 40VDC
- Emitter-Base Voltage (VEBO): 5VDC
- Continuous Collector Current (IC): 600mA
- Collector-Base Capacitance (Ccb): 8.5pF
- Transition Frequency (fT): 200MHz
- DC Current Gain (hFE): 100-300
- Operating Temperature Range: -55 - 150°C
- Power Dissipation (PD): 1.5W
Features:
- Advanced process technology
- Low error voltage
- Fast switching speed
- Full-voltage operation
2N4403 is composed of semiconductor material with at least three terminals for connection. A transistor can amplify a signal by controlling the current through its terminals. Some transistors are individually packaged, while many are found in integrated circuits.
