5V High Torque 4 Phase Stepper Motor
A powerful stepper motor with precise movement capabilities
- High quality stepper motor: Yes
- Voltage: DC 5V
- Diameter: 25mm
- Step Angle: 5.625 x 1/64
- Reduction Ratio: 1/64
- Rated voltage: 5VDC
- Number of Phase: 4
- Speed Variation Ratio: 1/64
Top Features:
- High torque output for moving small robots
- Can be connected with gear shaft and propeller
- Precision with more than 2000 steps per revolution
- Compact design with a 25mm diameter

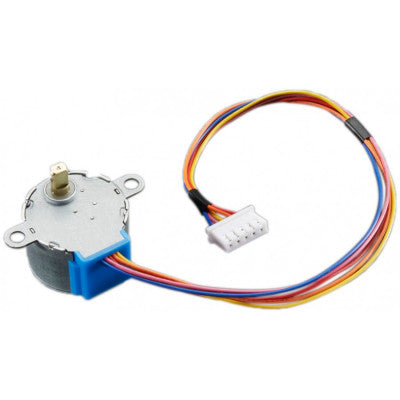

This stepper motor, model 28BYJ-48, is ideal for applications requiring precise and controlled motion. With a step angle of 5.625° /64 and a reduction ratio of 1/64, it offers the accuracy and torque needed for various projects. The motor operates at a rated voltage of 5VDC and has a frequency of 100Hz.
With a self-positioning torque of more than 34.3mN.m and high insulation grade (Class A), this stepper motor ensures reliable performance. It also boasts low noise emissions, generating less than 35dB at 120Hz with no load at a distance of 10cm.
Additionally, the stepper motor features a DC resistance of 50?±7%, making it efficient and suitable for continuous operation. The insulated resistance of over 10M? at 500V ensures safe and stable use in various electrical applications.
- Idle In-traction Frequency: > 600Hz
- Idle Out-traction Frequency: > 1000Hz
- In-traction Torque: >34.3mN.m(120Hz)
- Self-positioning Torque: >34.3mN.m
- Friction torque: 600-1200 gf.cm
- Pull in torque: 300 gf.cm
- Insulated electricity power: 600VAC/1mA/1s
- Insulation grade: A
Whether you are a hobbyist or a professional, this stepper motor offers the precision and performance required for your next project. Get in touch with our sales team for more information or bulk pricing options.
* Images are for illustration only; actual product may vary.
