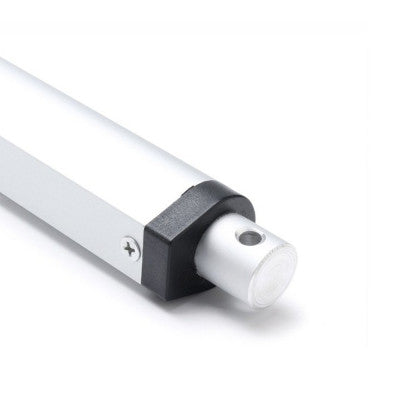

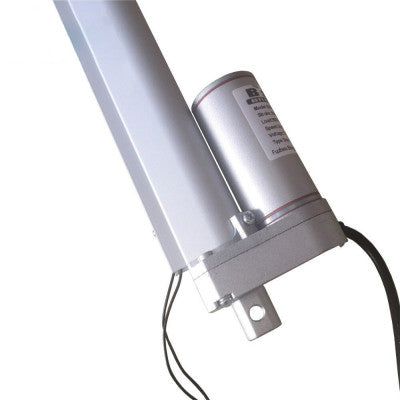

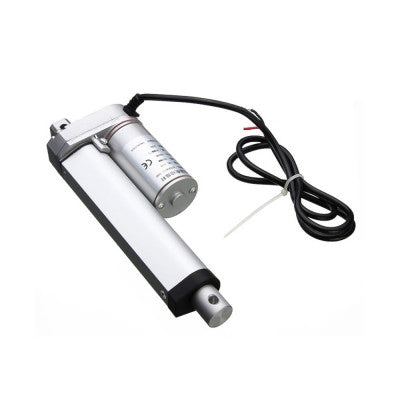

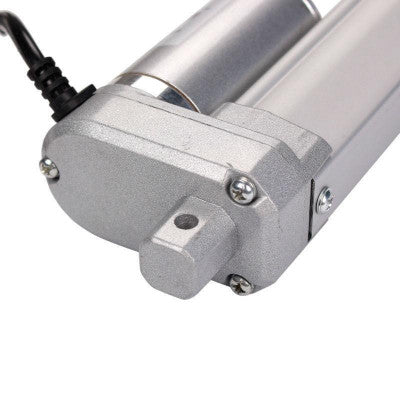

Miniature Linear Actuator Stroke Length 100MM,7mm/S,1500N,24V
An electric push rod ideal for various industrial applications.
- Stroke Length: 100mm (approx. 4 inches)
- Operating Voltage (VDC): 24
- Maximum current draw: 2A
- Operating temperature: -20°C to +63°C
- Mounting hole diameter (both ends): 1/4 (6.4mm)
- Protection Level: IP55
- Maximum static load: 337.2 lbs. (1500 Newtons)
- Self Locking Force: 1500N
- Motor Diameter: 36 mm
- Speed at no load: 0.28in/sec (7 mm/sec)
- Speed at full load: 0.22in/sec (5.5 mm/sec)
- Noise level: 45 dB
- Length (mm): 22
- Width (mm): 30
- Height (mm): 75
- Weight (gm): 892
Features:
- Aluminium frame and extension tube
- Compact Design
- Built-in Limit Switch
- Low Noise
This electric push rod is a type of electric driving device that converts the rotary motion of the motor into linear reciprocating motion. It can be utilized in various processes for remote control, centralized control, or automatic control. The push rod consists of a drive motor, reduction gear, screw, nut, guide sleeve, pushrod, sliding seat, shell, micro-motion control switch, etc.
Applications:
- Autos, solar tracking system, agricultural machinery
- The wedding system, industrial electric lifting system
- Medical electric bed, surgical bed, traction bed
- Electric equipment: Electric sofa, Electric lifting lever, Electric booth, electric sunroof, etc.
Package Includes: 1 x Linear Actuator Stroke Length 100MM, 7mm/S, 1500N, 24V
Note: Actual product may vary in terms of color and markings.
Caution: Direct connection with AC power, use in the above standard voltage environment, push/pull exceeding the maximum value, and forcing cessation with unfinished stroke may cause serious damage to the product. High-frequency operation and high temperature may shorten the product life.
*Images are for illustration only; actual product may vary.
