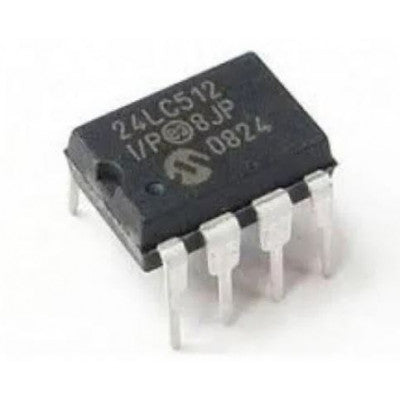

24LC512 64K x 8 Serial Electrically Erasable PROM
A versatile and low-power memory solution for advanced applications.
- Capacity: 512 Kbit
- Voltage Range: 1.7V to 5.5V
- Page Write Capability: Up to 128 bytes
- Reads: Random and sequential up to 512K boundary
- Address Lines: Functional, up to 4 M bit address space
- Package Options: 8-pin plastic DIP, SOIJ, SOIC, TSSOP, DFN, 14-lead TSSOP
Top Features:
- Single Supply down to 2.5V
- Low-Power CMOS Technology
- 2-Wire Serial Interface, I2C™ Compatible
- Up to Eight Devices Cascadable
This device is designed for personal communications and data acquisition applications, offering a wide voltage range for flexibility. With a page write capability of 128 bytes and the ability for both random and sequential reads, it provides versatile memory storage options. The functional address lines allow for multiple devices on the same bus, expanding the address space up to 4 M bit.
The 24LC512 features Schmitt Trigger Inputs for noise suppression, output slope control to eliminate ground bounce, and 100 kHz and 400 kHz clock compatibility. It boasts a page write time of 5 ms max, self-timed erase/write cycles, and a 128-byte page write buffer for efficient data handling.
- Supply Voltage: 6.5V
- Input/Output Voltage Range: -0.6V to VCC +1.0V
- Storage Temperature: -65°C to +150°C
- Ambient Temperature: -40°C to +125°C
- ESD Protection: >4 kV on all pins
The 24LC512 is Pb-Free and RoHS Compliant, with temperature ranges suitable for industrial and automotive applications. It offers more than 1 million erase/write cycles and data retention of over 200 years, ensuring long-term reliability.
For more details or bulk pricing inquiries, please contact our sales team directly at sales02@thansiv.com or call +91-8095406416.
Images are for illustration only; actual product may vary.
