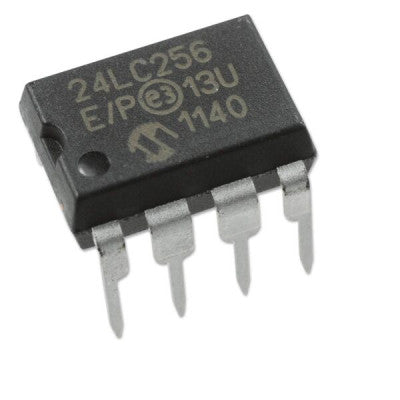

24LC256 32K x 8 Serial Electrically Erasable PROM
A versatile EEPROM for low-power applications with page write capability
- Spec name: 32K x 8 (256 Kbit)
- Spec name: Voltage Range: 1.7V to 5.5V
- Spec name: Page Write Capability: Up to 64 bytes
- Spec name: Random and Sequential Reads: Up to 256K boundary
- Spec name: Functional Address Lines: Up to 2 Mbit address space
Top Features:
- Single Supply Down to 2.5V
- Low-Power CMOS Technology
- Two-Wire Serial Interface, I2C Compatible
- Cascadable up to Eight Devices
This device is ideal for advanced, low-power applications like personal communications or data acquisition. With a wide voltage range and page write capability, it offers flexibility for various projects. The 24LC256 also supports both random and sequential reads up to the 256K boundary, making it versatile for different data access needs.
The EEPROM features functional address lines that enable connection of up to eight devices on the same bus, providing an extended address space of up to 2 Mbit. With a page write buffer of 64 bytes, hardware write-protect, and ESD protection exceeding 4000V, this device ensures data integrity and reliability.
Additionally, the 24LC256 offers compatibility with different frequencies (100 kHz, 400 kHz, and 1 MHz) and features self-timed erase/write cycles for efficient operation. With more than one million erase/write cycles and data retention exceeding 200 years, this EEPROM guarantees long-term performance.
- Spec name: ESD Protection: >4000V
- Spec name: Erase/Write Cycles: >1,000,000
- Spec name: Data Retention: >200 years
- Spec name: Temperature Ranges: -65°C to +150°C (Storage), -40°C to +125°C (Ambient with power applied)
For more details or bulk pricing inquiries, please contact our sales team directly at sales02@thansiv.com or call +91-8095406416.
Images are for illustration only; actual product may vary.
