24C64 Electrically Erasable PROM
Electrically erasable PROM with 32Kbits and 64Kbits memory array
- Interface: 2-wire
- Memory Array: 32Kbits (4K x 8) and 64Kbits (8K x 8)
- Pages: 32 byte pages
- Voltage Range: 1.8V to 5.5V
- Package Options: 8-pin PDIP, 8-pin SOIC, 8-pin TSSOP, 8-pad DFN, 8-pin MSOP
Features:
- Two-Wire Serial Interface, I2C Compatible
- Wide Voltage Operation: 1.8V to 5.5V
- Low Power CMOS Technology
- Hardware Data Protection
The 24C64 EEPROM is designed to be a practical, low-power 2-wire solution compatible with a wide range of voltages. It maintains compatibility with the popular 2-wire bus protocol, making it easy to use in various applications.
The device features a Write Protect pin (WP) for blocking write instructions over the bus. It also offers sequential read, noise suppression, and a self-time write cycle with auto clear.
Specifications:
- Supply Voltage (VS): -0.5 to +6.5 V
- Voltage on Any Pin (VP): -0.5 to Vcc + 0.5 V
- Temperature Under Bias (TBIAS): -55 to +125 °C
- Storage Temperature (TSTG): -65 to +150 °C
- Output Current (IOUT): 5 mA

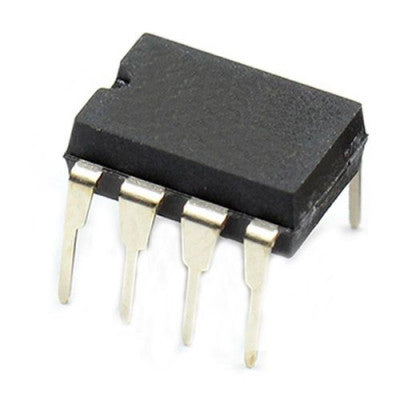

* Images are for illustration only; actual product may vary.
