24C16 Serial EEPROM
Optimized for low-power and low-voltage industrial applications
- Memory Capacity: 16384 bits
- Organization: 128/256/512/1024/2048 words of 8 bits each
- Package Options: 8-lead PDIP, 8-lead JEDEC SOIC, 8-lead Ultra Thin Mini-MAP (MLP 2x3), 5-lead SOT23, 8-lead TSSOP, 8-ball dBGA2
- Interface: Two-wire serial
- Voltage Options: 2.7V (2.7V to 5.5V), 1.8V (1.8V to 5.5V)
Top Features:
- Low-voltage operation (2.7V) and standard-voltage operation (1.8V)
- Two-wire serial interface with bidirectional data transfer
- Hardware data protection with write protect pin
- High reliability with 1 million write cycles endurance
The 24C16 provides 16384 bits of serial electrically erasable and programmable read-only memory (EEPROM) organized as 128/256/512/1024/2048 words of 8 bits each. It is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential. The device is available in various space-saving packages and is accessed via a Two-wire serial interface. The entire family is available in 2.7V (2.7V to 5.5V) and 1.8V (1.8V to 5.5V) versions.
Specifications:
- Voltage on Any Pin with Respect to Ground: -1.0V to +7.0V
- Storage Temperature: -65°C to +150°C
- Operating Temperature: -55°C to +125°C
- Maximum Operating Voltage: 6.25V
- DC Output Current: 5.0 mA
Related Document: 24C16 IC Datasheet

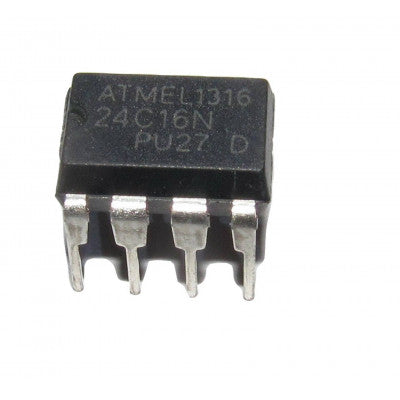

Images are for illustration only; actual product may vary.
