24C128 Serial Electrically Erasable Programmable Read Only Memory (EEPROM)
Optimized for industrial and commercial applications with low power and voltage operation
- Voltage on Any Pin with Respect to Ground: -1.0V to +7.0V
- Storage temperature: -65°C to +150°C
- Operating Temperature: -55°C to +125°C
- Maximum Operating Voltage: 6.25V
- DC Output Current: 5.0 mA
Features:
- Low-voltage and Standard-voltage Operation
- Internally Organized 16,384 x 8 and 32,768 x 8
- Two-wire Serial Interface
- Schmitt Trigger, Filtered Inputs for Noise Suppression

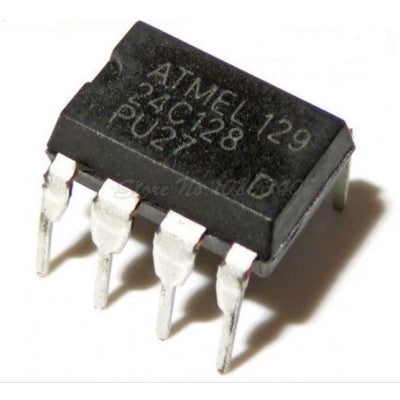

The 24C128 provides 131,072/262,144 bits of serial electrically erasable and programmable read only memory (EEPROM) organized as 16,384/32,768 words of 8 bits each. The device’s cascadable feature allows up to 4 devices to share a common Two-wire bus. The device is optimized for use in many industrial and commercial applications where low power and low voltage operation are essential. The devices are available in space-saving 8-lead JEDEC PDIP, 8-lead JEDEC SOIC, 8-lead EIAJ SOIC, 8-lead MAP (24C128), 8-lead TSSOP, 8-lead SOIC Array Package and 8-ball dBGA2 packages. In addition, the entire family is available in 2.7V (2.7V to 5.5V) and 1.8V (1.8V to 3.6V) versions.
The 24C128 also features Bidirectional Data Transfer Protocol, Write Protect Pin for Hardware and Software Data Protection, 64-byte Page Write Mode (Partial Page Writes Allowed), Self-timed Write Cycle (5 ms Max), High Reliability with Endurance of One Million Write Cycles and Data Retention of 40 Years. Extended Temperature and Lead-free/Halogen-free Devices are Available alongside various package options.
If you need more details or interested in bulk pricing, reach out to our sales team directly at sales02@thansiv.com or contact us at +91-8095406416.
*Images are for illustration only; actual product may vary.*
