24C1024 Electrically Erasable Programmable Read Only Memory
1,048,576 bits of serial EEPROM with cascadable feature and low-voltage operation
- Voltage on Any Pin with Respect to Ground: -1.0V to +7.0V
- Storage Temperature: -65°C to +150°C
- Operating Temperature: -55°C to +125°C
- Maximum Operating Voltage: 6.25V
- DC Output Current: 5.0 mA
- Packaging: 8-lead PDIP, 8-lead EIAJ SOIC, 8-lead LAP, 8-ball dBGA
- Versions: 2.7V (2.7V to 5.5V)
Top Features:
- Low-voltage operation: 2.7V (VCC = 2.7V to 5.5V)
- 131,072 x 8 organization
- 2-wire serial interface
- 400 kHz (2.7V) and 1 MHz (5V) clock rate
The 24C1024 provides 1,048,576 bits of serial electrically erasable and programmable read-only memory (EEPROM) organized as 131,072 words of 8 bits each. The cascadable feature allows up to 2 devices to share a common 2-wire bus, ideal for industrial and commercial applications requiring low power and low-voltage operation.
The device includes Schmitt triggers, filtered inputs for noise suppression, a bi-directional data transfer protocol, and a write protect pin for hardware and software data protection. It supports random and sequential read modes, with a self-timed write cycle of 5 ms typical for high reliability.
For detailed specifications, please refer to the related document: 24C1024 IC Data Sheet.

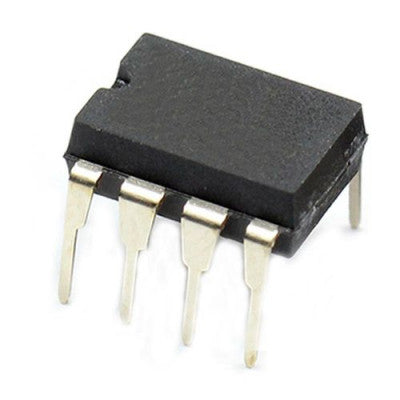

* Images are for illustration only; actual product may vary.
