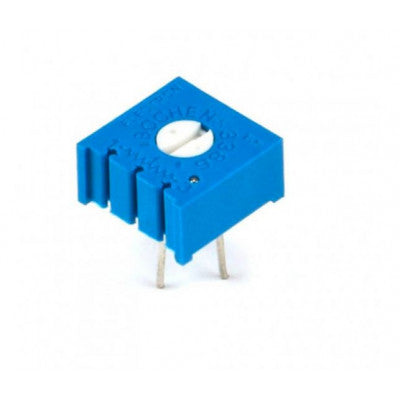

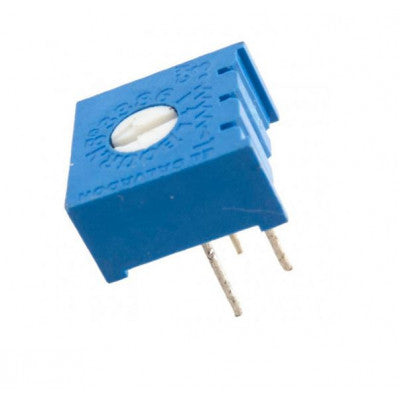

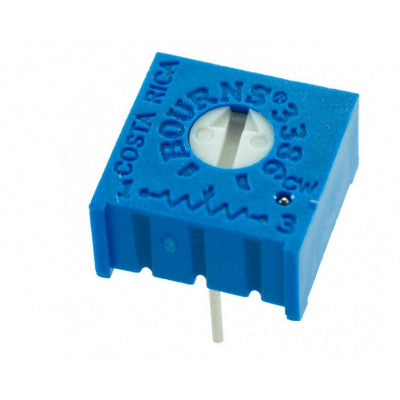

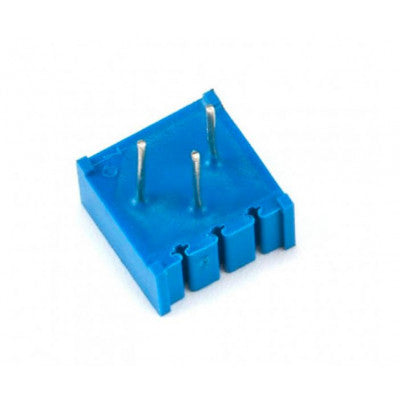

20k Ohm Variable Resistor (3386 Package) - Trimpot Trimmer Potentiometer
Adjustable potentiometer for precise value setting on PCBs.
- Resistance (ohm): 20k
- Tolerance(%): 10
- Temperature Co-efficient: 100ppm
- Operating Temperature Range (C): -55 to 125
- Mounting Type: Through Hole
- Length (mm): 9.5
- Width (mm): 9.5
- Height (mm): 5
- Weight (gm): 0.1 (approx)
Top Features:
- 20k Ohm resistance
- 10% tolerance
- Through Hole mounting
- Single turn adjustment
The 20k Ohm Variable Resistor (3386 Package) - Trimpot Trimmer Potentiometer is a versatile component that allows for easy adjustment of values on a PCB. With a tolerance of 10% and a temperature co-efficient of 100ppm, this potentiometer is reliable in various operating conditions. The Through Hole mounting type makes it simple to install, and its compact dimensions of 9.5mm x 9.5mm x 5mm ensure it can fit in tight spaces. Weighing only 0.1 grams, this potentiometer is lightweight and won't add bulk to your project.
Package Includes: 1 x 20k Ohm Variable Resistor (3386 Package) - Trimpot Trimmer Potentiometer.
*Images are for illustration only; actual product may vary.*
