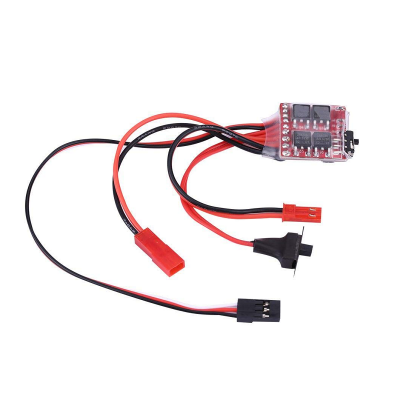

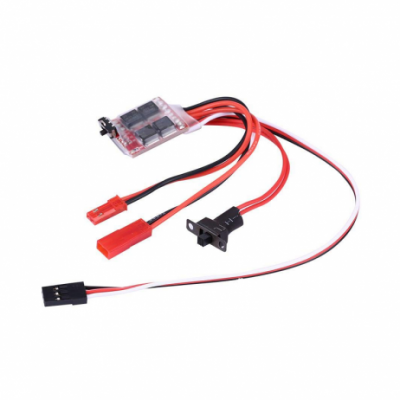

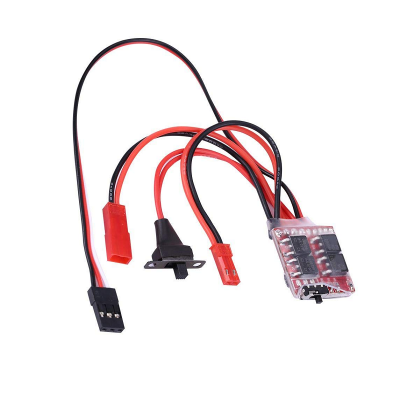

20A Brushed Electronic Speed Controller
A small-sized ESC capable of supplying up to 20A current with 2S lipo battery input.
- Operating Voltage (VDC): 3 ~ 9
- Constant Current: 20A
- Maximum Current: 25A
- Battery Input: Li-Po 2S
- Driver Frequency: 2KHz
- Length (mm): 35
- Width (mm): 22
- Height (mm): 6
- Weight (gm): 13
Features:
- Continuous Current: 20A
- Battery Input: 2S Lipo
- Compatible with 130/180/260/380 brushed motor
- Three Functions: Forward/Reverse/Breaking
This ESC is designed to accept a standard RC signal as input and provides functions for forward, reverse, and braking. It comes with high-quality silicone cables for both the battery input and motor output.
Package Includes: 1 x 20A Brushed Electronic Speed Controller
* Images are for illustration only; actual product may vary.
