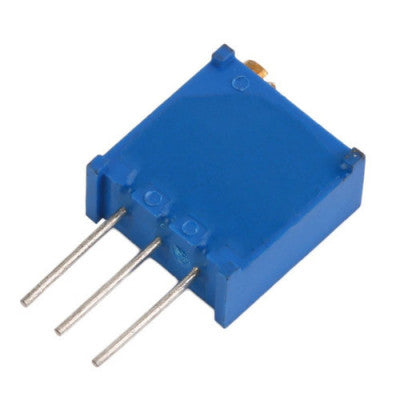

Trimpot Variable Resistor
High accuracy variable resistor for precise voltage variation
- Track Resistance: 200K ohm
- Resistance Tolerance: ± 5%
- Temperature Coefficient: ± 50ppm/°C
- Potentiometer Mounting: Through Hole
- Adjustment Type: Top
- Contact Resistance Variation +: 1%
- Full Power Rating Temperature: 85°C
- Lead Diameter: 0.5mm
- Operating Temperature Range: -55°C to +125°C
- Resistance: 200K ohm
- Resistor Element Material: Variable Rotary Trimmer
Top Features:
- High accuracy for precise voltage control
- Three terminal pins for easy PCB mounting
- Variable voltage output between 0V and Vcc
- Wide operating temperature range from -55°C to +125°C
The Trimpot is a high accuracy variable resistor with three terminal pins, ideal for PCB mounting. It allows for precise voltage variation as the rotary cermet is adjusted, providing variable voltage output between 0V and Vcc in a circuit. The resistor's resistance is 200K ohm with a tolerance of ± 5% and a temperature coefficient of ± 50ppm/°C.
The outer two pins are connected to Vcc and 0V, while the center pin outputs a variable voltage within the range. The Trimpot is designed with a lead diameter of 0.5mm and a potentiometer mounting type of Through Hole, ensuring secure and stable installation. With an adjustment type of Top, the Trimpot offers easy and convenient voltage control for various circuit applications.
*Images are for illustration only; actual product may vary.*
