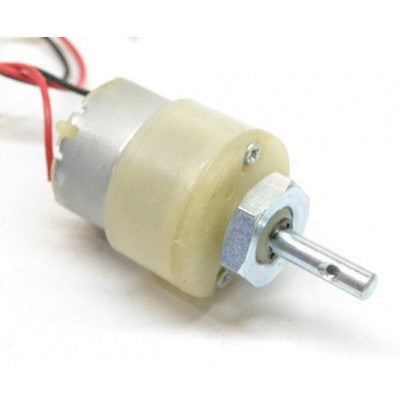

DC Motor – 200RPM – 12Volts
Perfect for robotics applications with 200 RPM speed and 12V operating voltage.
- RPM: 200
- Operating Voltage: 12V DC
- Gearbox: Attached Plastic (spur)Gearbox
- Shaft diameter: 6mm with internal hole
- Torque: 2 kg-cm
- No-load current: 60 mA (Max)
- Load current: 300 mA (Max)
Top Features:
- Robust metal gearbox for heavy-duty applications
- Easy to connect with nut and threads on the shaft
- Internal threaded shaft for simple wheel connection
- Wide RPM range suitable for various industrial applications
Geared motors are essentially simple DC motors with a gearbox attached, making them ideal for all-terrain robots and a variety of robotic applications. The 3mm threaded drill hole in the shaft allows easy connection to wheels or other mechanical assemblies.
These 200 RPM 12V DC geared motors are widely used in robotics applications due to their ease of use and standard size. You can control these motors with an Arduino or compatible board without spending a lot of money. The popular L298N H-bridge module with an onboard voltage regulator motor driver is compatible with this motor, operating between 5 and 35V DC. Alternatively, you can choose a precise motor driver module from our wide range to meet your specific requirements.
Enhance your robotics and industrial projects with the simplicity and reliability of these DC geared motors.
